| MM-C-42 Metric Mounting Magnets

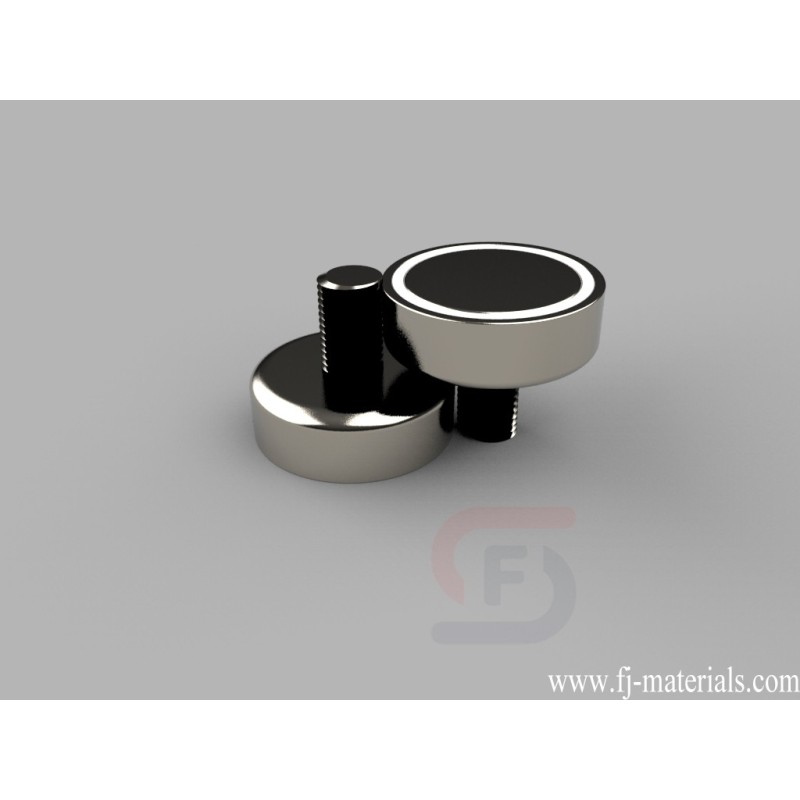

MM-C-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) M=6mm (0.24" ) (M6 Coarse Male threaded stud) H=20mm (0.79" ) h=9mm (0.35" ), Axial magnetized. Pull force is approximately 149.9 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-C-42 Metric Mounting Magnets with high quality at competitive price.

MM-C-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) M=6mm (0.24" ) (M6 Coarse Male threaded stud) H=20mm (0.79" ) h=9mm (0.35" ), Axial magnetized. Pull force is approximately 149.9 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-C-42

Data sheet

Item Number
MM-C-42
Material
NdFeB
Grade
N38
Size
D is 42mm (1.65" ) M is 6mm (0.24" ) (M6 Coarse Male threaded stud) H is 20mm (0.79" ) h is 9mm (0.35" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
2.85 oz. (80.8 g)
Pull Force
149.9 lbs
