| MM-C-48 Metric Mounting Magnets

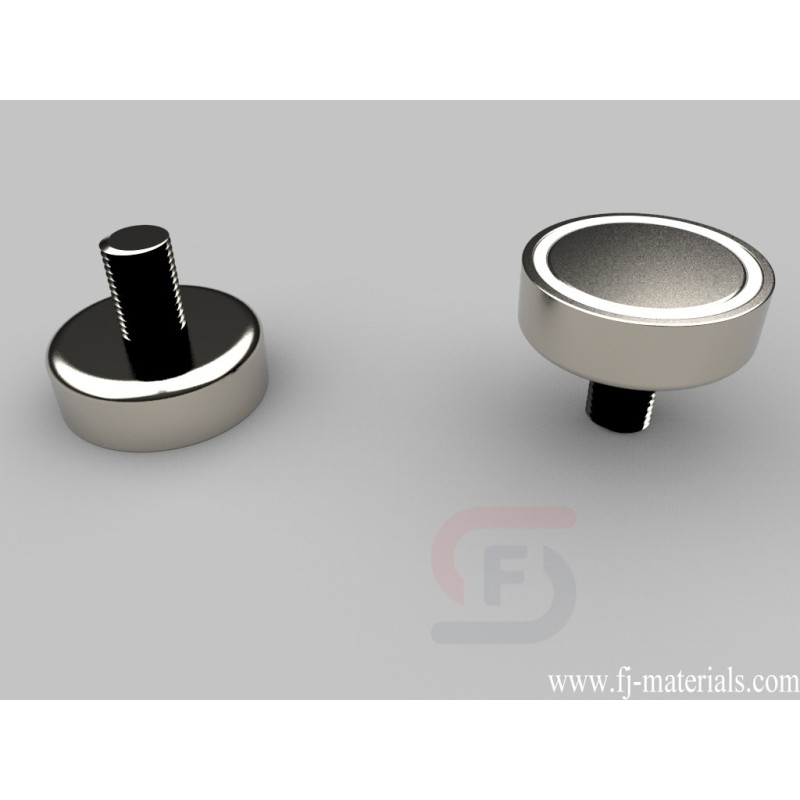

MM-C-48 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=48mm (1.89" ) M=8mm (0.31" ) (M8 Coarse Male threaded stud) H=24mm (0.94" ) h=11mm (0.43" ), Axial magnetized. Pull force is approximately 179.0 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-C-48 Metric Mounting Magnets with high quality at competitive price.

MM-C-48 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=48mm (1.89" ) M=8mm (0.31" ) (M8 Coarse Male threaded stud) H=24mm (0.94" ) h=11mm (0.43" ), Axial magnetized. Pull force is approximately 179.0 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-C-48

Data sheet

Item Number
MM-C-48
Material
NdFeB
Grade
N38
Size
D is 48mm (1.89" ) M is 8mm (0.31" ) (M8 Coarse Male threaded stud) H is 24mm (0.94" ) h is 11mm (0.43" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
4.59 oz. (130 g)
Pull Force
179.0 lbs
