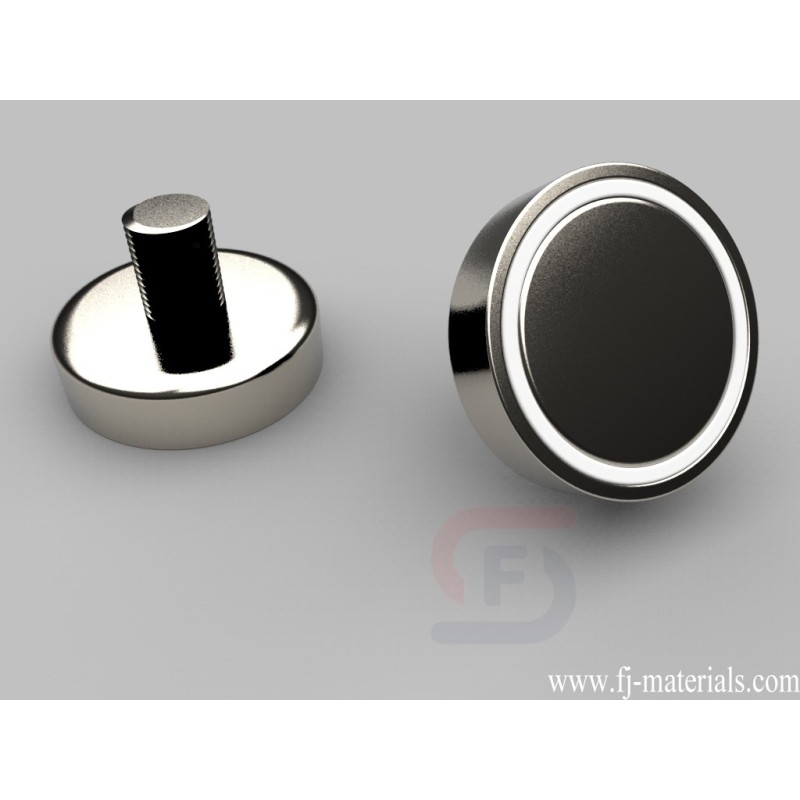

| MM-C-75 Metric Mounting Magnets
MM-C-75 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=75mm (2.95" ) M=10mm (0.39" ) (M10 Coarse Male threaded stud) H=34mm (1.34" ) h=18mm (0.71" ), Axial magnetized. Pull force is approximately 361.6 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-C-75 Metric Mounting Magnets with high quality at competitive price.
MM-C-75 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=75mm (2.95" ) M=10mm (0.39" ) (M10 Coarse Male threaded stud) H=34mm (1.34" ) h=18mm (0.71" ), Axial magnetized. Pull force is approximately 361.6 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-C-75
Data sheet
- Item Number
- MM-C-75
- Material
- NdFeB
- Grade
- N38
- Size
- D is 75mm (2.95" ) M is 10mm (0.39" ) (M10 Coarse Male threaded stud) H is 34mm (1.34" ) h is 18mm (0.71" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 19.47 oz. (552 g)
- Pull Force
- 361.6 lbs
MM-C-75 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=75mm (2.95" ) M=10mm (0.39" ) (M10 Coarse Male threaded stud) H=34mm (1.34" ) h=18mm (0.71" ), Axial magnetized. Pull force is approximately 361.6 lbs.
