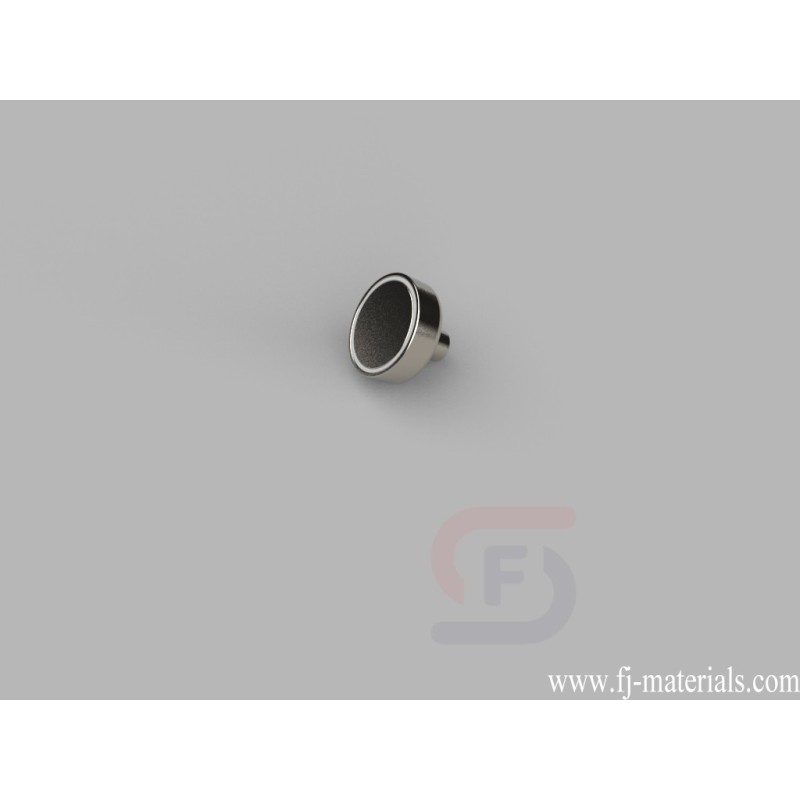

| MM-D-12 Metric Mounting Magnets
MM-D-12 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=12mm (0.39" ) d=3mm (0.12" ) (M3 Coarse Female threadedstud) H=13mm (0.51" ) h=5mm (0.20" ) M=6mm (0.24" ), Axial magnetized. Pull force is approximately 5.20 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-D-12 Metric Mounting Magnets with high quality at competitive price.
MM-D-12 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=12mm (0.39" ) d=3mm (0.12" ) (M3 Coarse Female threadedstud) H=13mm (0.51" ) h=5mm (0.20" ) M=6mm (0.24" ), Axial magnetized. Pull force is approximately 5.20 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-D-12
Data sheet
- Item Number
- MM-D-12
- Material
- NdFeB
- Grade
- N38
- Size
- D is 12mm (0.39" ) d is 3mm (0.12" ) (M3 Coarse Female threadedstud) H is 13mm (0.51" ) h is 5mm (0.20" ) M is 6mm (0.24" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.17 oz. (4.82 g)
- Pull Force
- 5.20 lbs
MM-D-12 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=12mm (0.39" ) d=3mm (0.12" ) (M3 Coarse Female threadedstud) H=13mm (0.51" ) h=5mm (0.20" ) M=6mm (0.24" ), Axial magnetized. Pull force is approximately 5.20 lbs.
