| MM-D-20 Metric Mounting Magnets

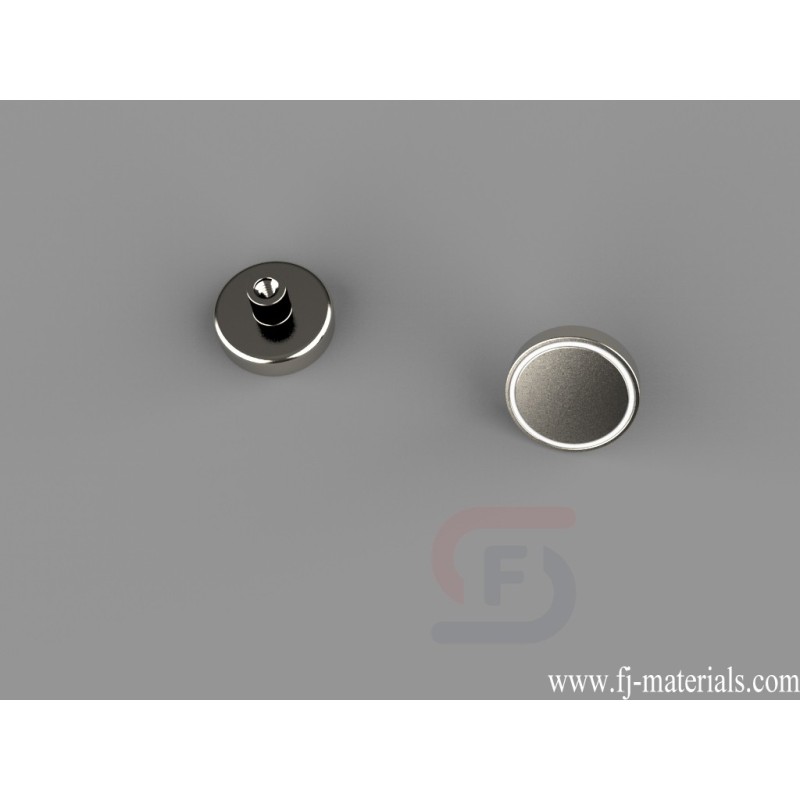

MM-D-20 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=20mm (0.79" ) d=4mm (0.16" ) (M4 Coarse Female threaded stud) H=15mm (0.59" ) h=7mm (0.28" ) M=7mm (0.28" ), Axial magnetized. Pull force is approximately 28.7 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-D-20 Metric Mounting Magnets with high quality at competitive price.
MM-D-20 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=20mm (0.79" ) d=4mm (0.16" ) (M4 Coarse Female threaded stud) H=15mm (0.59" ) h=7mm (0.28" ) M=7mm (0.28" ), Axial magnetized. Pull force is approximately 28.7 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-D-20
Data sheet
- Item Number
- MM-D-20
- Material
- NdFeB
- Grade
- N38
- Size
- D is 20mm (0.79" ) d is 4mm (0.16" ) (M4 Coarse Female threaded stud) H is 15mm (0.59" ) h is 7mm (0.28" ) M is 7mm (0.28" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.56 oz. (15.9 g)
- Pull Force
- 28.7 lbs
MM-D-20 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=20mm (0.79" ) d=4mm (0.16" ) (M4 Coarse Female threaded stud) H=15mm (0.59" ) h=7mm (0.28" ) M=7mm (0.28" ), Axial magnetized. Pull force is approximately 28.7 lbs.
