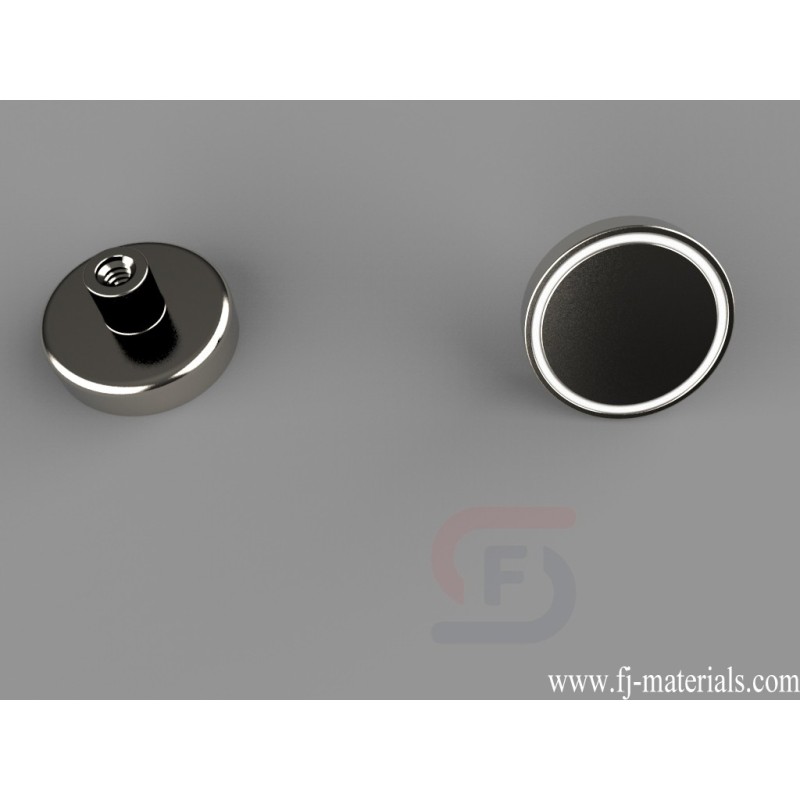

| MM-D-36 Metric Mounting Magnets
MM-D-36 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=36mm (1.42" ) d=6mm (0.24" ) (M6 Coarse Female threaded stud) H=18mm (0.71" ) h=6mm (0.24" ) M=10mm (0.39" ), Axial magnetized. Pull force is approximately 90.4 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-D-36 Metric Mounting Magnets with high quality at competitive price.
MM-D-36 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=36mm (1.42" ) d=6mm (0.24" ) (M6 Coarse Female threaded stud) H=18mm (0.71" ) h=6mm (0.24" ) M=10mm (0.39" ), Axial magnetized. Pull force is approximately 90.4 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-D-36
Data sheet
- Item Number
- MM-D-36
- Material
- NdFeB
- Grade
- N38
- Size
- D is 36mm (1.42" ) d is 6mm (0.24" ) (M6 Coarse Female threaded stud) H is 18mm (0.71" ) h is 6mm (0.24" ) M is 10mm (0.39" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.90 oz. (53.9 g)
- Pull Force
- 90.4 lbs
MM-D-36 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=36mm (1.42" ) d=6mm (0.24" ) (M6 Coarse Female threaded stud) H=18mm (0.71" ) h=6mm (0.24" ) M=10mm (0.39" ), Axial magnetized. Pull force is approximately 90.4 lbs.
