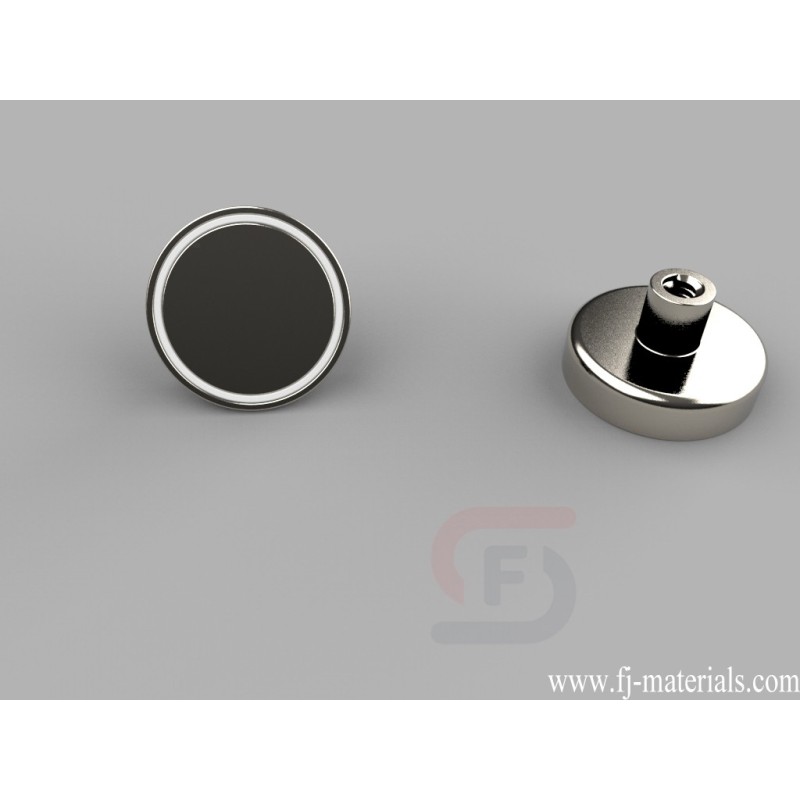

| MM-D-42 Metric Mounting Magnets
MM-D-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) d=6mm (0.32" ) (M6 Coarse Female threaded stud) H=20mm (0.79" ) h=9mm (0.36" ) M=10mm (0.39" ), Axial magnetized. Pull force is approximately 149.9 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-D-42 Metric Mounting Magnets with high quality at competitive price.
MM-D-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) d=6mm (0.32" ) (M6 Coarse Female threaded stud) H=20mm (0.79" ) h=9mm (0.36" ) M=10mm (0.39" ), Axial magnetized. Pull force is approximately 149.9 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-D-42
Data sheet
- Item Number
- MM-D-42
- Material
- NdFeB
- Grade
- N38
- Size
- D is 42mm (1.65" ) d is 6mm (0.32" ) (M6 Coarse Female threaded stud) H is 20mm (0.79" ) h is 9mm (0.36" ) M is 10mm (0.39" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 3.44 oz. (97.5 g)
- Pull Force
- 149.9 lbs
MM-D-42 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=42mm (1.65" ) d=6mm (0.32" ) (M6 Coarse Female threaded stud) H=20mm (0.79" ) h=9mm (0.36" ) M=10mm (0.39" ), Axial magnetized. Pull force is approximately 149.9 lbs.
