| MM-D-60 Metric Mounting Magnets

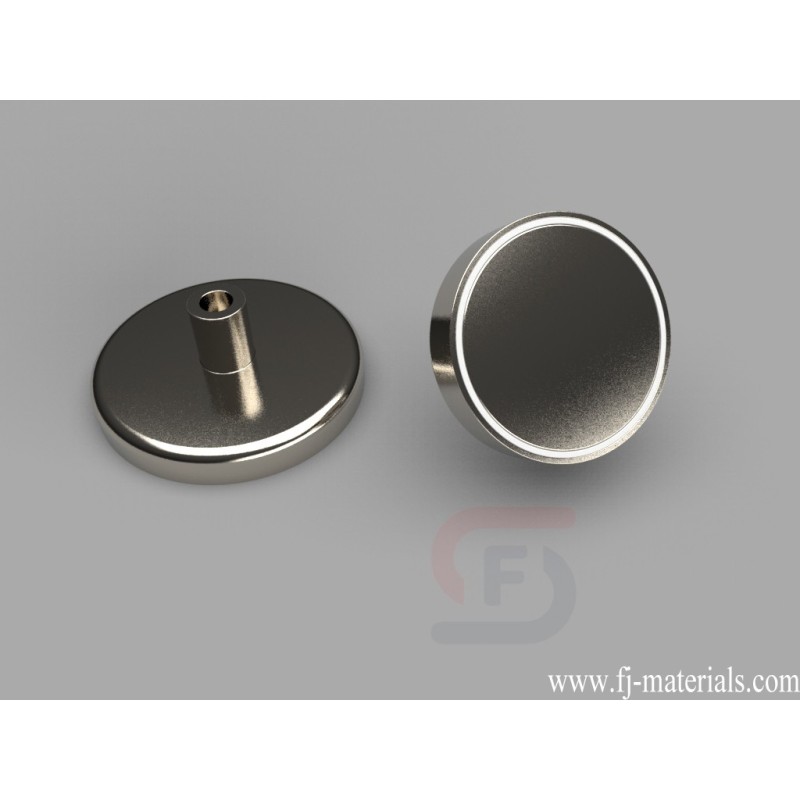

MM-D-60 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=60mm (2.36" ) d=8mm (0.32" ) (M8 Coarse Female threaded stud) H=30mm (1.18" ) h=15mm (0.59" ) M=12mm (0.47" ), Axial magnetized. Pull force is approximately 249.1 lbs.
Yiwu Fenjiao E-commerce Firm supply MM-D-60 Metric Mounting Magnets with high quality at competitive price.
MM-D-60 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=60mm (2.36" ) d=8mm (0.32" ) (M8 Coarse Female threaded stud) H=30mm (1.18" ) h=15mm (0.59" ) M=12mm (0.47" ), Axial magnetized. Pull force is approximately 249.1 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
MM-D-60
Data sheet
- Item Number
- MM-D-60
- Material
- NdFeB
- Grade
- N38
- Size
- D is 60mm (2.36" ) d is 8mm (0.32" ) (M8 Coarse Female threaded stud) H is 30mm (1.18" ) h is 15mm (0.59" ) M is 12mm (0.47" )
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 9.30 oz. (264 g)
- Pull Force
- 249.1 lbs
MM-D-60 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=60mm (2.36" ) d=8mm (0.32" ) (M8 Coarse Female threaded stud) H=30mm (1.18" ) h=15mm (0.59" ) M=12mm (0.47" ), Axial magnetized. Pull force is approximately 249.1 lbs.
