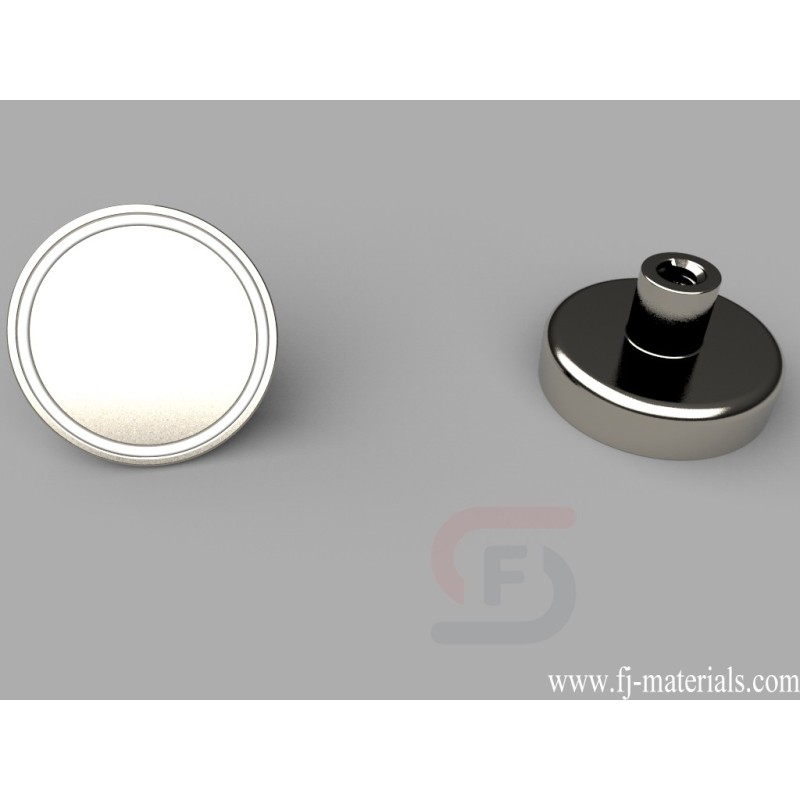

| MM-D-75 Metric Mounting Magnets

MM-D-75 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=75mm (2.95" ) d=10mm (0.39" ) (M10 Coarse Female threaded stud) H=34mm (1.34" ) h=18mm (0.71" ) M=16mm (0.63" ), Axial magnetized. Pull force is approximately 361.6 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-D-75 Metric Mounting Magnets with high quality at competitive price.

MM-D-75 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=75mm (2.95" ) d=10mm (0.39" ) (M10 Coarse Female threaded stud) H=34mm (1.34" ) h=18mm (0.71" ) M=16mm (0.63" ), Axial magnetized. Pull force is approximately 361.6 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-D-75

Data sheet

Item Number
MM-D-75
Material
NdFeB
Grade
N38
Size
D is 75mm (2.95" ) d is 10mm (0.39" ) (M10 Coarse Female threaded stud) H is 34mm (1.34" ) h is 18mm (0.71" ) M is 16mm (0.63" )
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
19.47 oz. (552 g)
Pull Force
361.6 lbs
