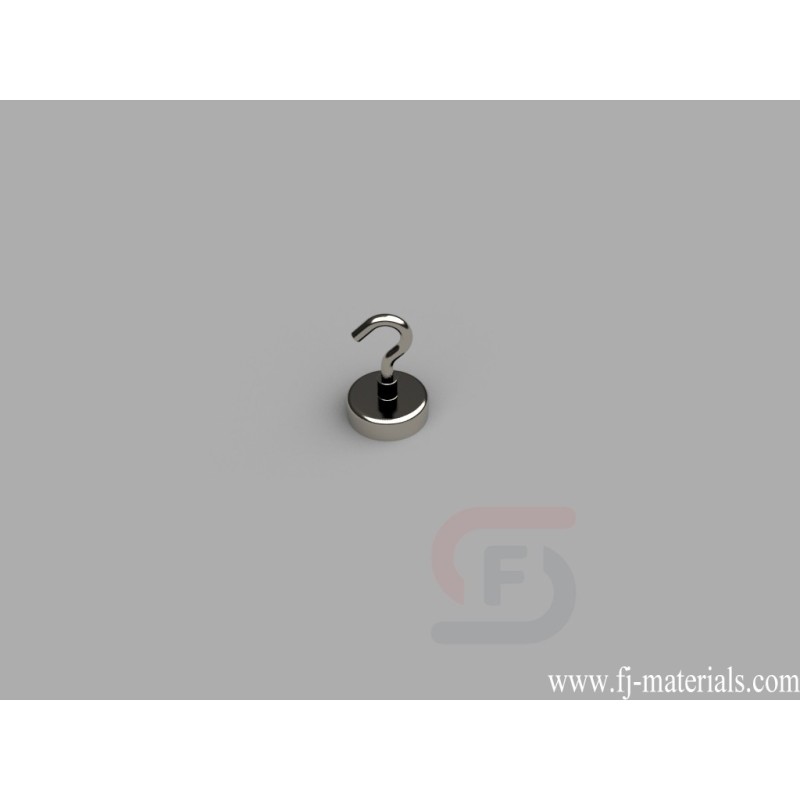

| MM-E-16 Metric Mounting Magnets

MM-E-16 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=16mm (0.63" ) H=35mm (1.38" ) M=4mm (0.16" ) (M4 Coarsethreaded hook), Axial magnetized. Pull force is approximately 12.1 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-E-16 Metric Mounting Magnets with high quality at competitive price.

MM-E-16 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=16mm (0.63" ) H=35mm (1.38" ) M=4mm (0.16" ) (M4 Coarsethreaded hook), Axial magnetized. Pull force is approximately 12.1 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-E-16

Data sheet

Item Number
MM-E-16
Material
NdFeB
Grade
N38
Size
D is 16mm (0.63" ) H is 35mm (1.38" ) M is 4mm (0.16" ) (M4 Coarsethreaded hook)
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.39 oz. (11.1 g)
Pull Force
12.1 lbs
