| MM-E-20 Metric Mounting Magnets

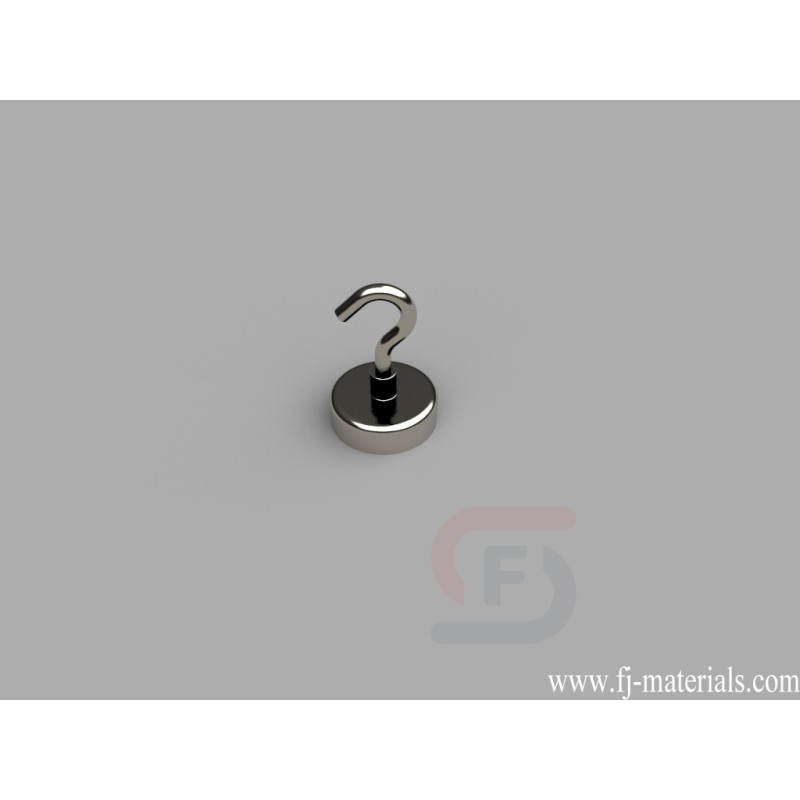

MM-E-20 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=20mm (0.79" ) H=37mm (1.46" ) M=4mm (0.16" ) (M4 Coarsethreaded hook), Axial magnetized. Pull force is approximately 28.7 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-E-20 Metric Mounting Magnets with high quality at competitive price.

MM-E-20 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=20mm (0.79" ) H=37mm (1.46" ) M=4mm (0.16" ) (M4 Coarsethreaded hook), Axial magnetized. Pull force is approximately 28.7 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-E-20

Data sheet

Item Number
MM-E-20
Material
NdFeB
Grade
N38
Size
D is 20mm (0.79" ) H is 37mm (1.46" ) M is 4mm (0.16" ) (M4 Coarsethreaded hook)
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.66 oz. (18.7 g)
Pull Force
28.7 lbs
