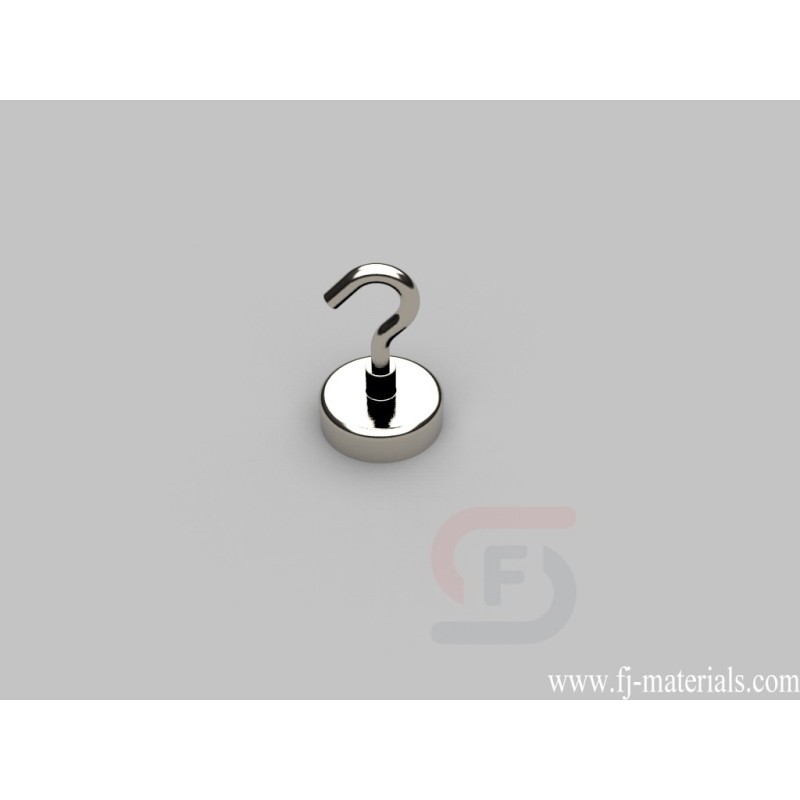

| MM-E-25 Metric Mounting Magnets

MM-E-25 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=25mm (0.98" ) H=43mm (1.69" ) M=5mm (0.20" ) (M5 Coarsethreaded hook), Axial magnetized. Pull force is approximately 48.5 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-E-25 Metric Mounting Magnets with high quality at competitive price.

MM-E-25 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=25mm (0.98" ) H=43mm (1.69" ) M=5mm (0.20" ) (M5 Coarsethreaded hook), Axial magnetized. Pull force is approximately 48.5 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-E-25

Data sheet

Item Number
MM-E-25
Material
NdFeB
Grade
N38
Size
D is 25mm (0.98" ) H is 43mm (1.69" ) M is 5mm (0.20" ) (M5 Coarsethreaded hook)
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.16 oz. (32.9 g)
Pull Force
48.5 lbs

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
