| MM-E-36 Metric Mounting Magnets

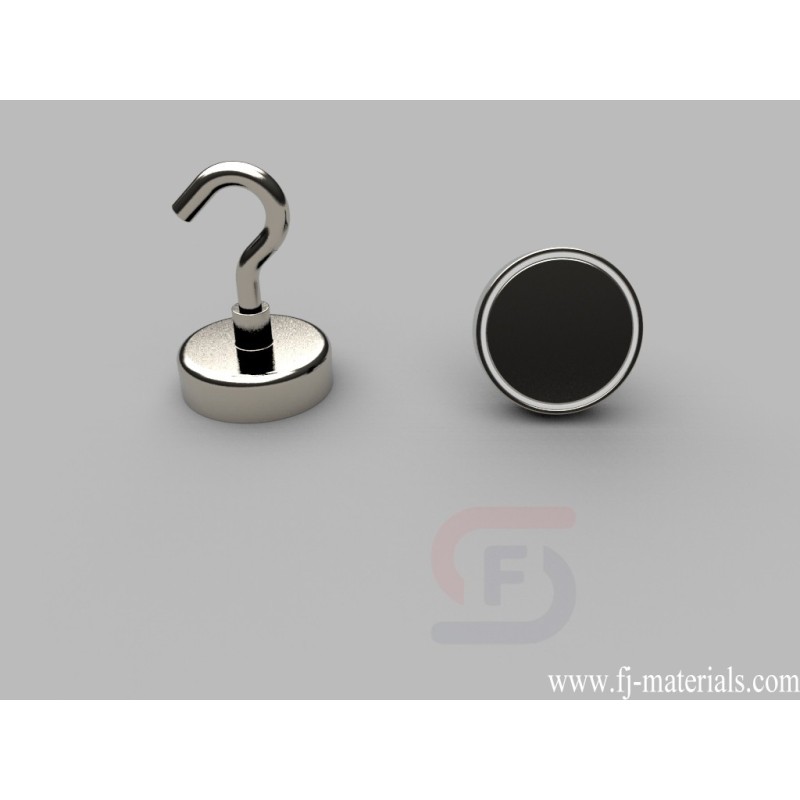

MM-E-36 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=36mm (1.42" ) H=46mm (1.81" ) M=6mm (0.24" ) (M6 Coarsethreaded hook), Axial magnetized. Pull force is approximately 90.4 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-E-36 Metric Mounting Magnets with high quality at competitive price.

MM-E-36 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=36mm (1.42" ) H=46mm (1.81" ) M=6mm (0.24" ) (M6 Coarsethreaded hook), Axial magnetized. Pull force is approximately 90.4 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-E-36

Data sheet

Item Number
MM-E-36
Material
NdFeB
Grade
N38
Size
D is 36mm (1.42" ) H is 46mm (1.81" ) M is 6mm (0.24" ) (M6 Coarsethreaded hook)
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
2.22 oz. (62.9 g)
Pull Force
90.4 lbs

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
