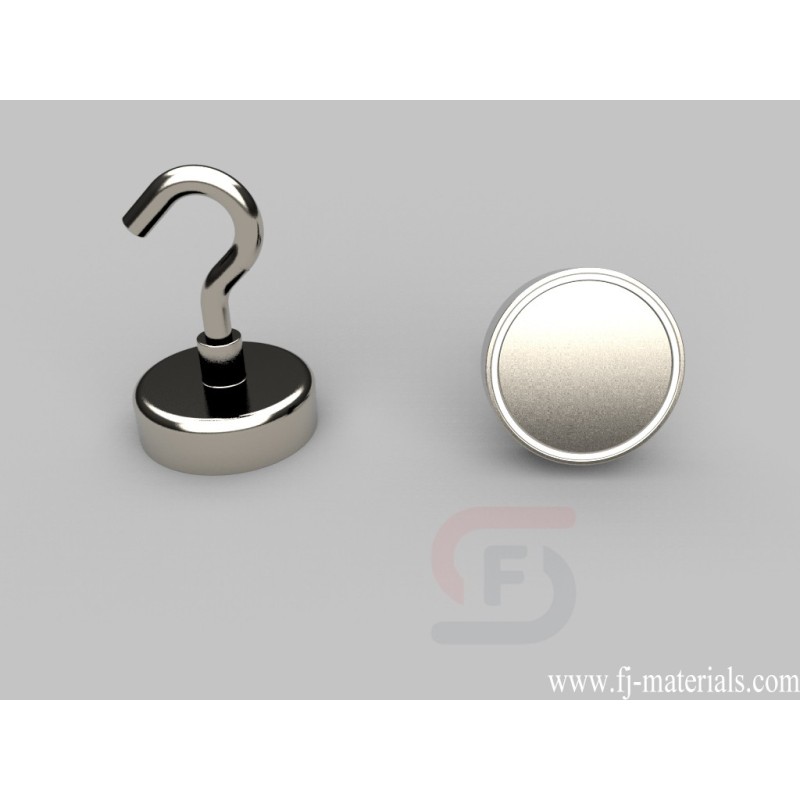

| MM-E-48 Metric Mounting Magnets

MM-E-48 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=48mm (1.89" ) H=62mm (2.44" ) M=8mm (0.32" ) (M8 Coarsethreaded hook), Axial magnetized. Pull force is approximately 178.6 lbs.

Yiwu Fenjiao E-commerce Firm supply MM-E-48 Metric Mounting Magnets with high quality at competitive price.

MM-E-48 Metric Mounting Magnets is made of Grade N38 NdFeB, Nickel Plated. The dimension is D=48mm (1.89" ) H=62mm (2.44" ) M=8mm (0.32" ) (M8 Coarsethreaded hook), Axial magnetized. Pull force is approximately 178.6 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

MM-E-48

Data sheet

Item Number
MM-E-48
Material
NdFeB
Grade
N38
Size
D is 48mm (1.89" ) H is 62mm (2.44" ) M is 8mm (0.32" ) (M8 Coarsethreaded hook)
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
5.45 oz. (155 g)
Pull Force
178.6 lbs

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
