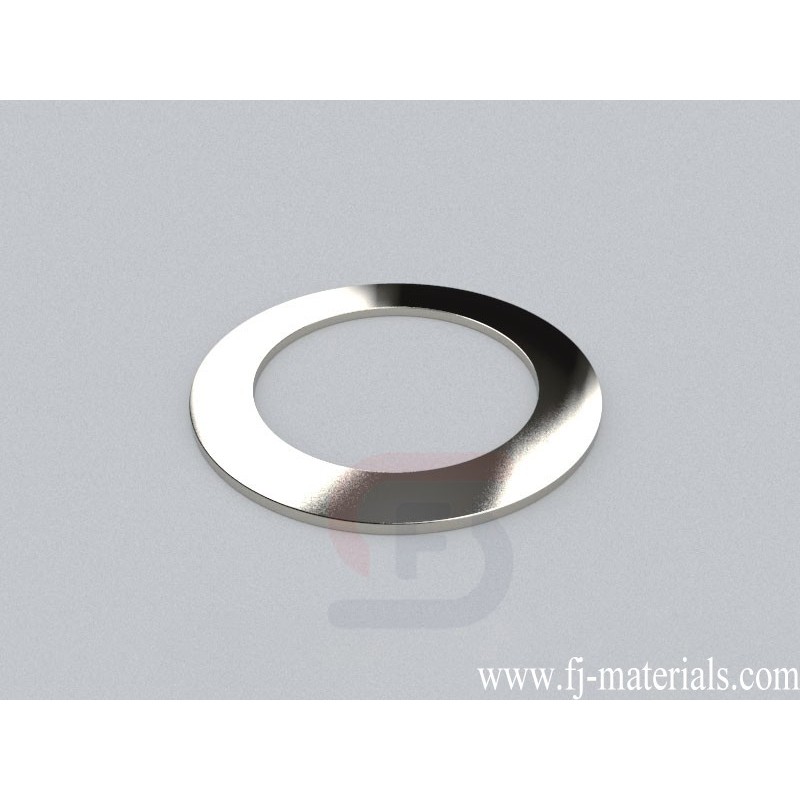

OD100xID70x3mm thick Ring Magnets | R-OD100H3ID70-N35

R-OD100H3ID70-N35 Neodymium Magnet, OD100xID70x3mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD100xID70x3mm thick, Thru Thickness magnetized. Pull force is approximately 28.864 lbs (13.12 kg).

R-OD100H3ID70-N35 Neodymium Ring Magnets is made from high perfermance N35 NdFeB. The dimesion is OD100xID70x3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 28.864 lbs (13.12 kg). Magnetization direction: Through Thickness

R-OD100H3ID70-N35 Neodymium Magnet, OD100xID70x3mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD100xID70x3mm thick, Thru Thickness magnetized. Pull force is approximately 28.864 lbs (13.12 kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R-OD100H3ID70-N35

Data sheet

Item Number
R-OD100H3ID70-N35
Material
NdFeB
Grade
N35
Size
OD100xID70x3mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
90.124g
Pull Force
28.864 lbs (13.12 kg)
Diameter
H. 50.8-254mm
Thickness
A. 0.00-3.18mm
Inner Diameter
H. 50.8-254mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
