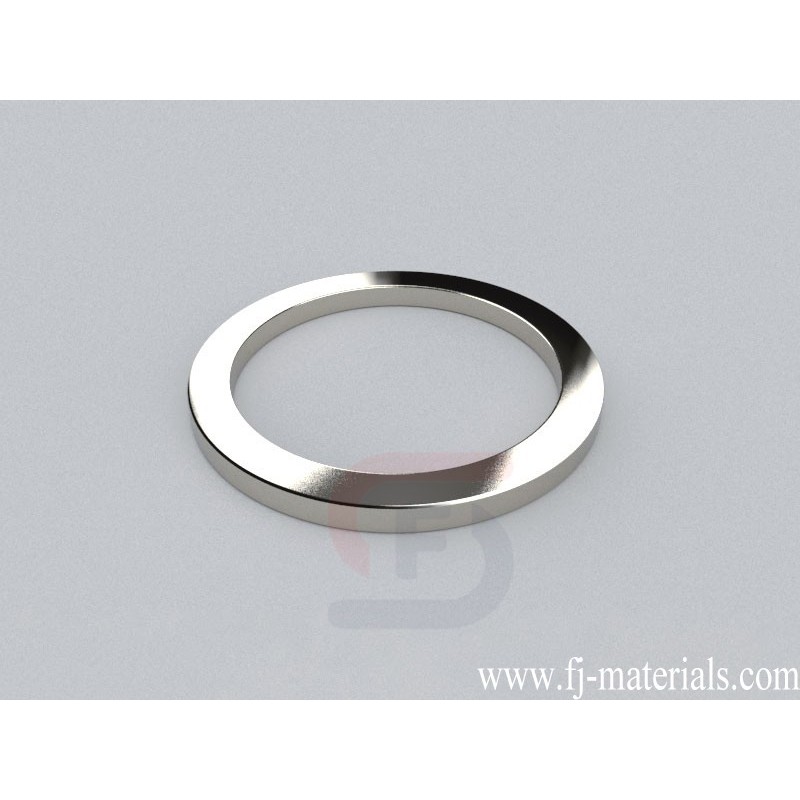

OD100xID80x7mm thick Ring Magnets | R-OD100H7ID80-N35

R-OD100H7ID80-N35 Neodymium Magnet, OD100xID80x7mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD100xID80x7mm thick, Thru Thickness magnetized. Pull force is approximately 49.148 lbs (22.34 kg).

R-OD100H7ID80-N35 Neodymium Ring Magnets is made from high perfermance N35 NdFeB. The dimesion is OD100xID80x7mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 49.148 lbs (22.34 kg). Magnetization direction: Through Thickness

R-OD100H7ID80-N35 Neodymium Magnet, OD100xID80x7mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD100xID80x7mm thick, Thru Thickness magnetized. Pull force is approximately 49.148 lbs (22.34 kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R-OD100H7ID80-N35

Data sheet

Item Number
R-OD100H7ID80-N35
Material
NdFeB
Grade
N35
Size
OD100xID80x7mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
148.440g
Pull Force
49.148 lbs (22.34 kg)
Diameter
H. 50.8-254mm
Thickness
C. 6.35-9.53mm
Inner Diameter
H. 50.8-254mm
