OD10xID5x1.5mm thick Ring Magnets | R-OD10H1.5ID5-N42

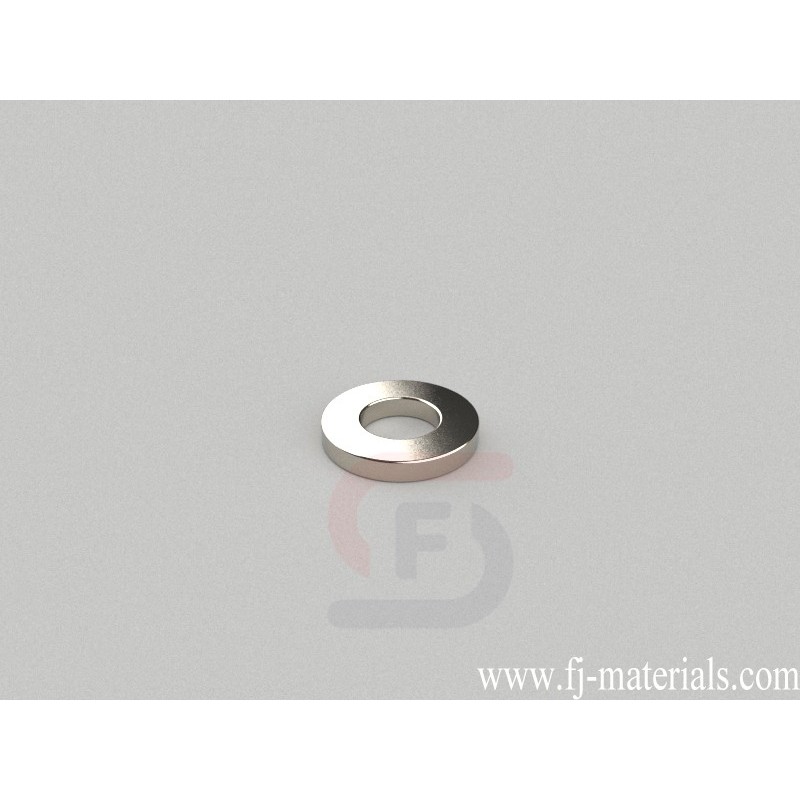

R-OD10H1.5ID5-N42 Neodymium Magnet, OD10xID5x1.5mm Ring Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is OD10xID5x1.5mm thick, Thru Thickness magnetized. Pull force is approximately test value.

R-OD10H1.5ID5-N42 Neodymium Ring Magnets is made from high perfermance N42 NdFeB. The dimesion is OD10xID5x1.5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness

R-OD10H1.5ID5-N42 Neodymium Magnet, OD10xID5x1.5mm Ring Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is OD10xID5x1.5mm thick, Thru Thickness magnetized. Pull force is approximately test value.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R-OD10H1.5ID5-N42

Data sheet

Item Number
R-OD10H1.5ID5-N42
Material
NdFeB
Grade
N42
Size
OD10xID5x1.5mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.663g
Pull Force
test value
Diameter
D. 9.53-12.7mm
Thickness
A. 0.00-3.18mm
Inner Diameter
B. 3.18-6.35mm
