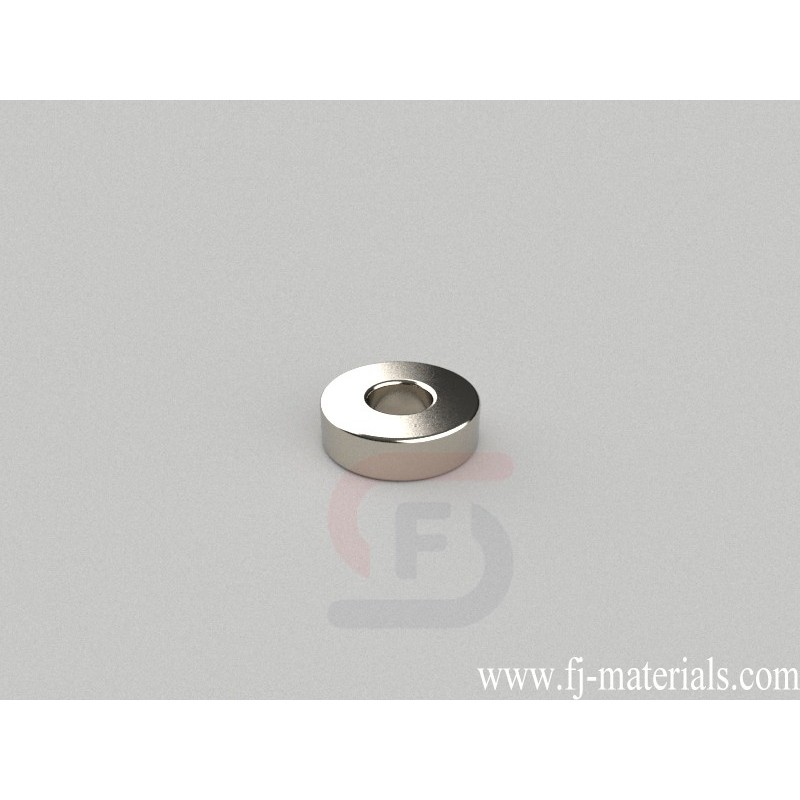

OD10xID4x3mm thick Ring Magnets | R-OD10H3ID4-N42

R-OD10H3ID4-N42 Neodymium Magnet, OD10xID4x3mm Ring Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is OD10xID4x3mm thick, Thru Thickness magnetized. Pull force is approximately 3.058 lbs (1.39 kg).

R-OD10H3ID4-N42 Neodymium Ring Magnets is made from high perfermance N42 NdFeB. The dimesion is OD10xID4x3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 3.058 lbs (1.39 kg). Magnetization direction: Through Thickness

R-OD10H3ID4-N42 Neodymium Magnet, OD10xID4x3mm Ring Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is OD10xID4x3mm thick, Thru Thickness magnetized. Pull force is approximately 3.058 lbs (1.39 kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R-OD10H3ID4-N42

Data sheet

Item Number
R-OD10H3ID4-N42
Material
NdFeB
Grade
N42
Size
OD10xID4x3mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
1.484g
Pull Force
3.058 lbs (1.39 kg)
Diameter
D. 9.53-12.7mm
Thickness
A. 0.00-3.18mm
Inner Diameter
B. 3.18-6.35mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
