OD12.5xID3x6mm thick Ring Magnets | R-OD12.5H6ID3-N38(23012 Nth)

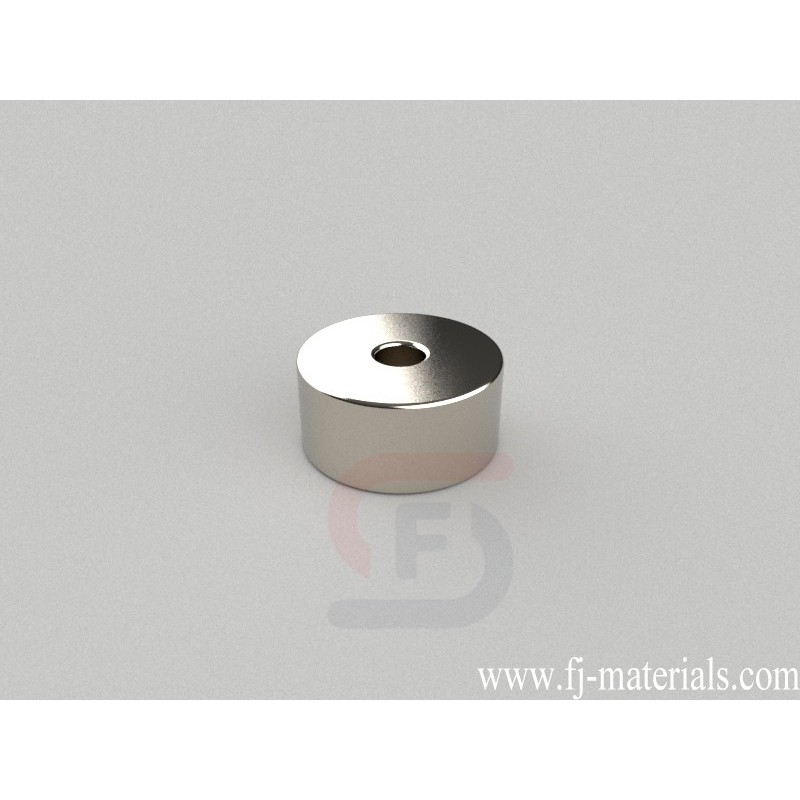

R-OD12.5H6ID3-N38(23012 Nth) Neodymium Magnet, OD12.5xID3x6mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD12.5xID3x6mm thick, Thru Thickness magnetized. Pull force is approximately 8.580 lbs (3.9 kg).

R-OD12.5H6ID3-N38(23012 Nth) Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD12.5xID3x6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 8.580 lbs (3.9 kg). Magnetization direction: Through Thickness

R-OD12.5H6ID3-N38(23012 Nth) Neodymium Magnet, OD12.5xID3x6mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD12.5xID3x6mm thick, Thru Thickness magnetized. Pull force is approximately 8.580 lbs (3.9 kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R-OD12.5H6ID3-N38(23012 Nth)

Data sheet

Item Number
R-OD12.5H6ID3-N38(23012 Nth)
Material
NdFeB
Grade
N38
Size
OD12.5xID3x6mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
5.204g
Pull Force
8.580 lbs (3.9 kg)
Diameter
D. 9.53-12.7mm
Thickness
B. 3.18-6.35mm
Inner Diameter
A. 0.00-3.18mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
