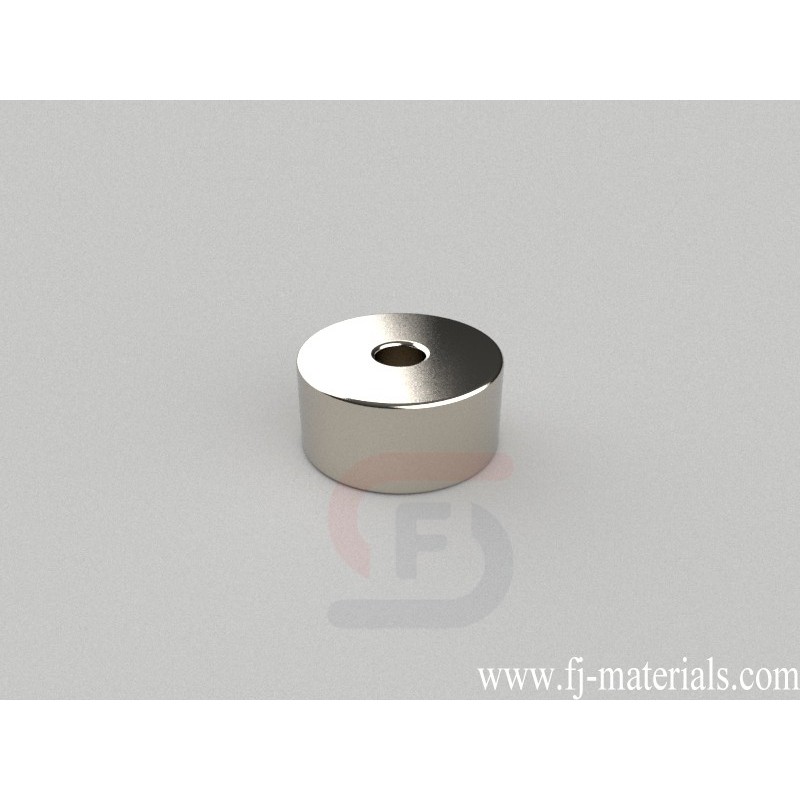

OD12.5xID3x6mm thick Ring Magnets | R-OD12.5H6ID3-N38(23012 Sth)
R-OD12.5H6ID3-N38(23012 Sth) Neodymium Magnet, OD12.5xID3x6mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD12.5xID3x6mm thick, Thru Thickness magnetized. Pull force is approximately 8.580 lbs (3.9 kg).
R-OD12.5H6ID3-N38(23012 Sth) Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD12.5xID3x6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 8.580 lbs (3.9 kg). Magnetization direction: Through Thickness
R-OD12.5H6ID3-N38(23012 Sth) Neodymium Magnet, OD12.5xID3x6mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD12.5xID3x6mm thick, Thru Thickness magnetized. Pull force is approximately 8.580 lbs (3.9 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD12.5H6ID3-N38(23012 Sth)
Data sheet
- Item Number
- R-OD12.5H6ID3-N38(23012 Sth)
- Material
- NdFeB
- Grade
- N38
- Size
- OD12.5xID3x6mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 5.204g
- Pull Force
- 8.580 lbs (3.9 kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- A. 0.00-3.18mm
