OD12xID2x5mm thick Ring Magnets | R-OD12H5ID2-N35

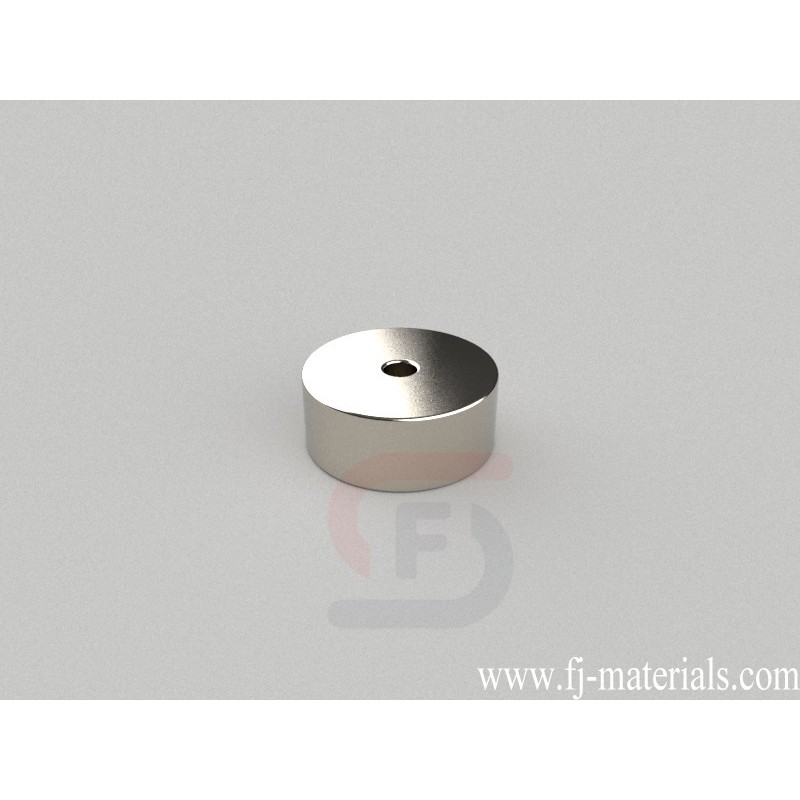

R-OD12H5ID2-N35 Neodymium Magnet, OD12xID2x5mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD12xID2x5mm thick, Thru Thickness magnetized. Pull force is approximately 6.974 lbs (3.170 kg).
R-OD12H5ID2-N35 Neodymium Ring Magnets is made from high perfermance N35 NdFeB. The dimesion is OD12xID2x5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 6.974 lbs (3.170 kg). Magnetization direction: Through Thickness
R-OD12H5ID2-N35 Neodymium Magnet, OD12xID2x5mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD12xID2x5mm thick, Thru Thickness magnetized. Pull force is approximately 6.974 lbs (3.170 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD12H5ID2-N35
Data sheet
- Item Number
- R-OD12H5ID2-N35
- Material
- NdFeB
- Grade
- N35
- Size
- OD12xID2x5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 4.123g
- Pull Force
- 6.974 lbs (3.170 kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- A. 0.00-3.18mm
R-OD12H5ID2-N35 Neodymium Magnet, OD12xID2x5mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD12xID2x5mm thick, Thru Thickness magnetized. Pull force is approximately 6.974 lbs (3.170 kg).
