OD14xID9x3mm thick Ring Magnets | R-OD14H3ID9-N38

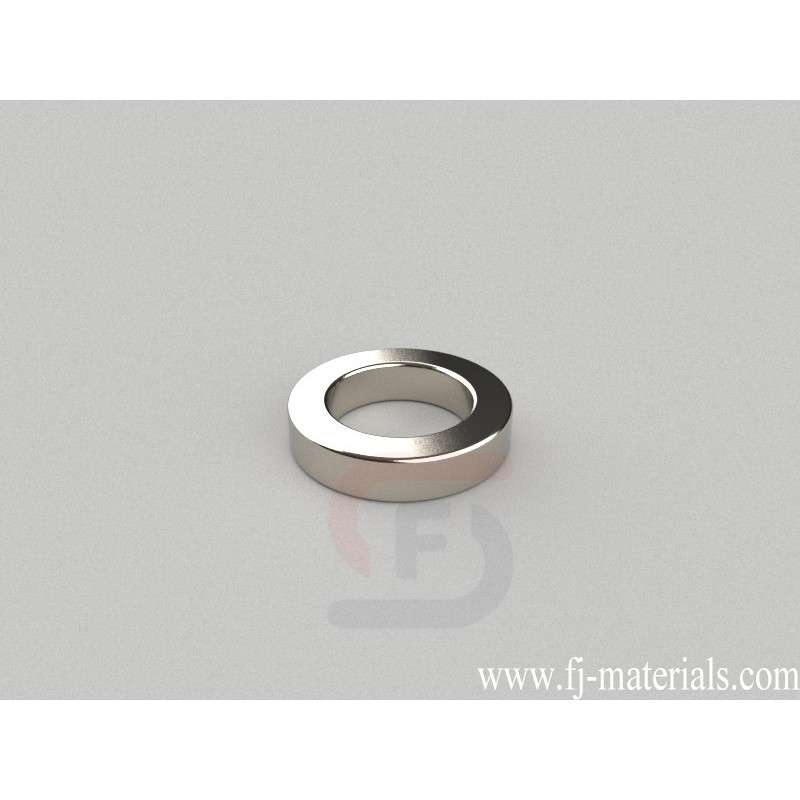

R-OD14H3ID9-N38 Neodymium Magnet, OD14xID9x3mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD14xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately 4.114 lbs (1.87 kg).
R-OD14H3ID9-N38 Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD14xID9x3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.114 lbs (1.87 kg). Magnetization direction: Through Thickness
R-OD14H3ID9-N38 Neodymium Magnet, OD14xID9x3mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD14xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately 4.114 lbs (1.87 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD14H3ID9-N38
Data sheet
- Item Number
- R-OD14H3ID9-N38
- Material
- NdFeB
- Grade
- N38
- Size
- OD14xID9x3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.032g
- Pull Force
- 4.114 lbs (1.87 kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- C. 6.35-9.53mm
R-OD14H3ID9-N38 Neodymium Magnet, OD14xID9x3mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD14xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately 4.114 lbs (1.87 kg).
