OD15xID9x3mm thick Ring Magnets | R-OD15H3ID9-N35

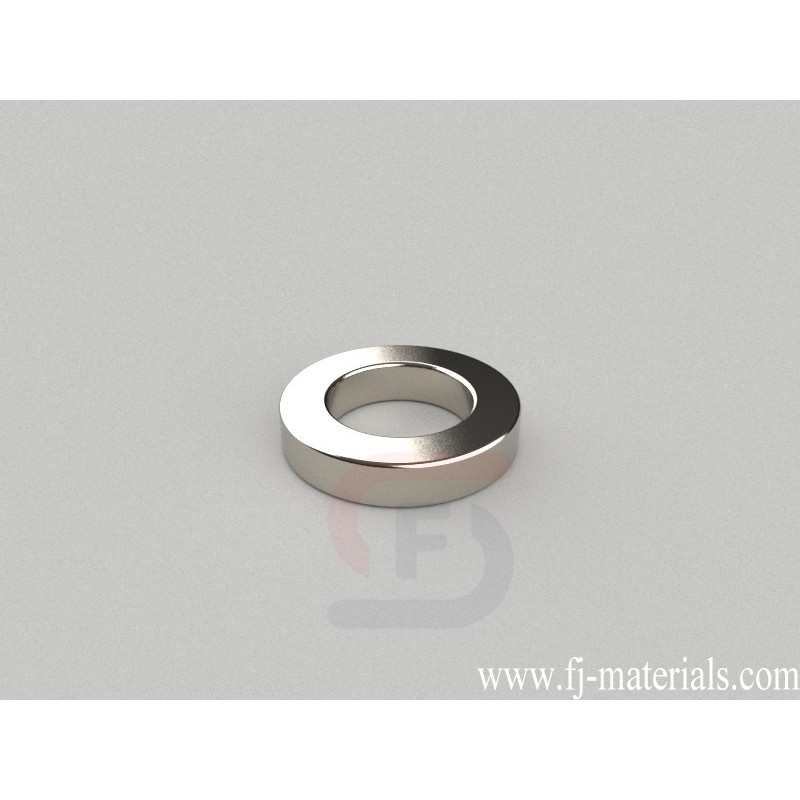

R-OD15H3ID9-N35 Neodymium Magnet, OD15xID9x3mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD15xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately 4.558 lbs (2.072 kg).
R-OD15H3ID9-N35 Neodymium Ring Magnets is made from high perfermance N35 NdFeB. The dimesion is OD15xID9x3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.558 lbs (2.072 kg). Magnetization direction: Through Thickness
R-OD15H3ID9-N35 Neodymium Magnet, OD15xID9x3mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD15xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately 4.558 lbs (2.072 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD15H3ID9-N35
Data sheet
- Item Number
- R-OD15H3ID9-N35
- Material
- NdFeB
- Grade
- N35
- Size
- OD15xID9x3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.545g
- Pull Force
- 4.558 lbs (2.072 kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- C. 6.35-9.53mm
R-OD15H3ID9-N35 Neodymium Magnet, OD15xID9x3mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD15xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately 4.558 lbs (2.072 kg).
