OD15xID9x3mm thick Ring Magnets | R-OD15H3ID9-N52

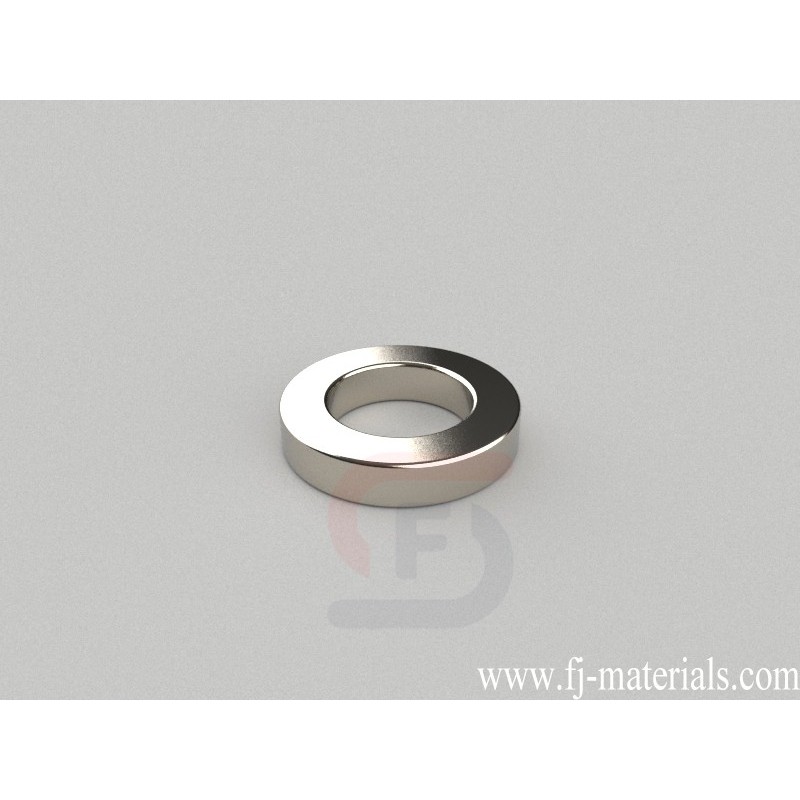

R-OD15H3ID9-N52 Neodymium Magnet, OD15xID9x3mm Ring Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is OD15xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately test value.
R-OD15H3ID9-N52 Neodymium Ring Magnets is made from high perfermance N52 NdFeB. The dimesion is OD15xID9x3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness
R-OD15H3ID9-N52 Neodymium Magnet, OD15xID9x3mm Ring Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is OD15xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately test value.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD15H3ID9-N52
Data sheet
- Item Number
- R-OD15H3ID9-N52
- Material
- NdFeB
- Grade
- N52
- Size
- OD15xID9x3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.545g
- Pull Force
- test value
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- C. 6.35-9.53mm
R-OD15H3ID9-N52 Neodymium Magnet, OD15xID9x3mm Ring Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is OD15xID9x3mm thick, Thru Thickness magnetized. Pull force is approximately test value.
