OD19.4xID10x1.65mm thick Ring Magnets | R-OD19.4H1.65ID10-N38H

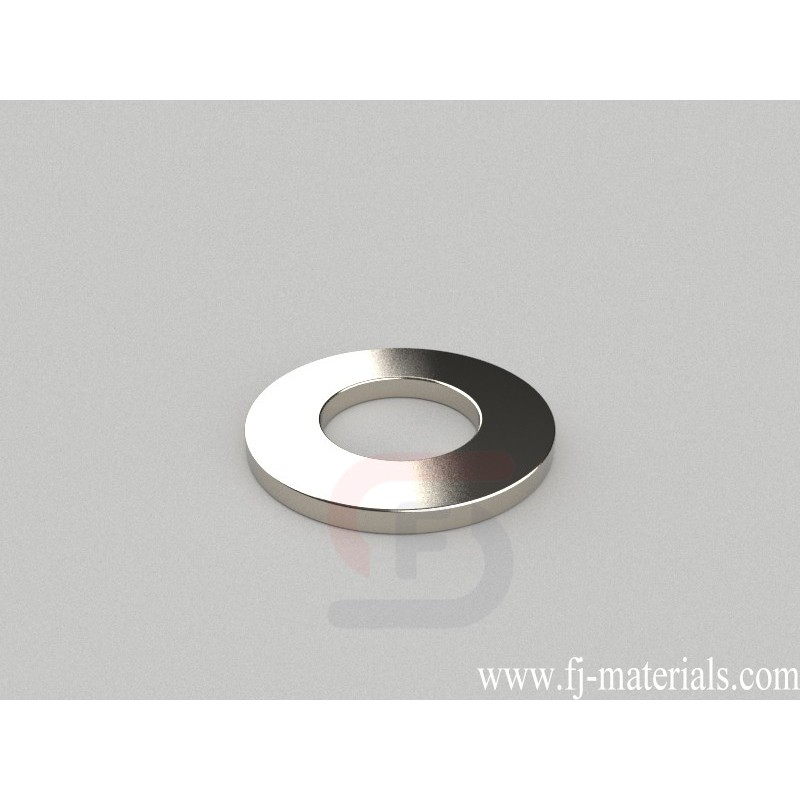

R-OD19.4H1.65ID10-N38H Neodymium Magnet, OD19.4xID10x1.65mm Ring Magnet is made of Grade N38H NdFeB, Nickel Plated. The dimension is OD19.4xID10x1.65mm thick, Thru Thickness magnetized. Pull force is approximately test value.
R-OD19.4H1.65ID10-N38H Neodymium Ring Magnets is made from high perfermance N38H NdFeB. The dimesion is OD19.4xID10x1.65mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness
R-OD19.4H1.65ID10-N38H Neodymium Magnet, OD19.4xID10x1.65mm Ring Magnet is made of Grade N38H NdFeB, Nickel Plated. The dimension is OD19.4xID10x1.65mm thick, Thru Thickness magnetized. Pull force is approximately test value.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD19.4H1.65ID10-N38H
Data sheet
- Item Number
- R-OD19.4H1.65ID10-N38H
- Material
- NdFeB
- Grade
- N38H
- Size
- OD19.4xID10x1.65mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.686g
- Pull Force
- test value
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- D. 9.53-12.7mm
R-OD19.4H1.65ID10-N38H Neodymium Magnet, OD19.4xID10x1.65mm Ring Magnet is made of Grade N38H NdFeB, Nickel Plated. The dimension is OD19.4xID10x1.65mm thick, Thru Thickness magnetized. Pull force is approximately test value.
