OD19xID6x10mm thick Ring Magnets | R-OD19H10ID6-N38

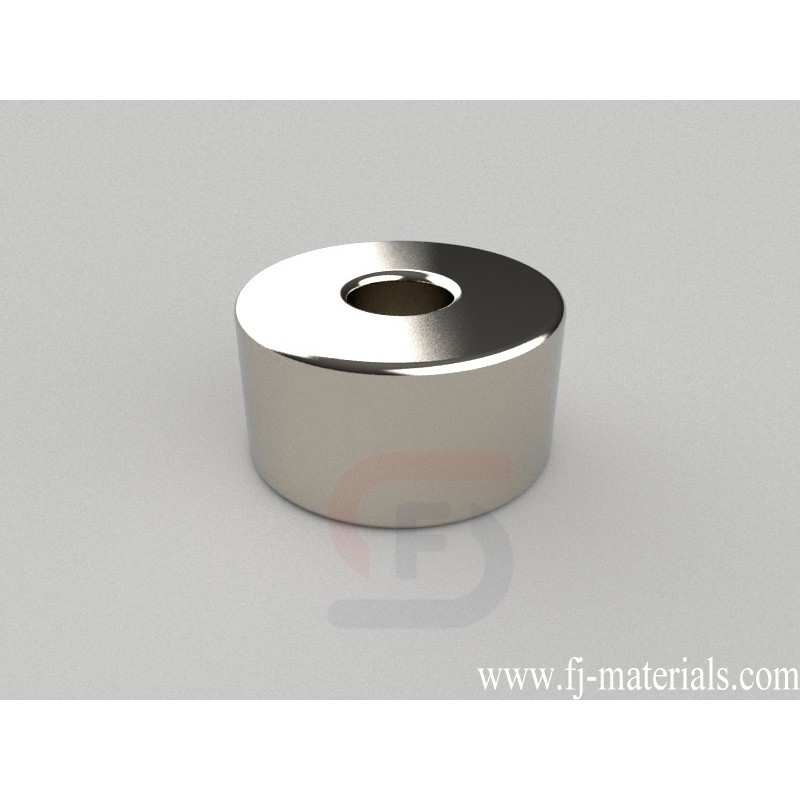

R-OD19H10ID6-N38 Neodymium Magnet, OD19xID6x10mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD19xID6x10mm thick, Thru Thickness magnetized. Pull force is approximately 20.680 lbs (9.4 kg).
R-OD19H10ID6-N38 Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD19xID6x10mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 20.680 lbs (9.4 kg). Magnetization direction: Through Thickness
R-OD19H10ID6-N38 Neodymium Magnet, OD19xID6x10mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD19xID6x10mm thick, Thru Thickness magnetized. Pull force is approximately 20.680 lbs (9.4 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD19H10ID6-N38
Data sheet
- Item Number
- R-OD19H10ID6-N38
- Material
- NdFeB
- Grade
- N38
- Size
- OD19xID6x10mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 19.144g
- Pull Force
- 20.680 lbs (9.4 kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- B. 3.18-6.35mm
R-OD19H10ID6-N38 Neodymium Magnet, OD19xID6x10mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD19xID6x10mm thick, Thru Thickness magnetized. Pull force is approximately 20.680 lbs (9.4 kg).
