OD19xID8x4mm thick Ring Magnets | R-OD19H4ID8-N38

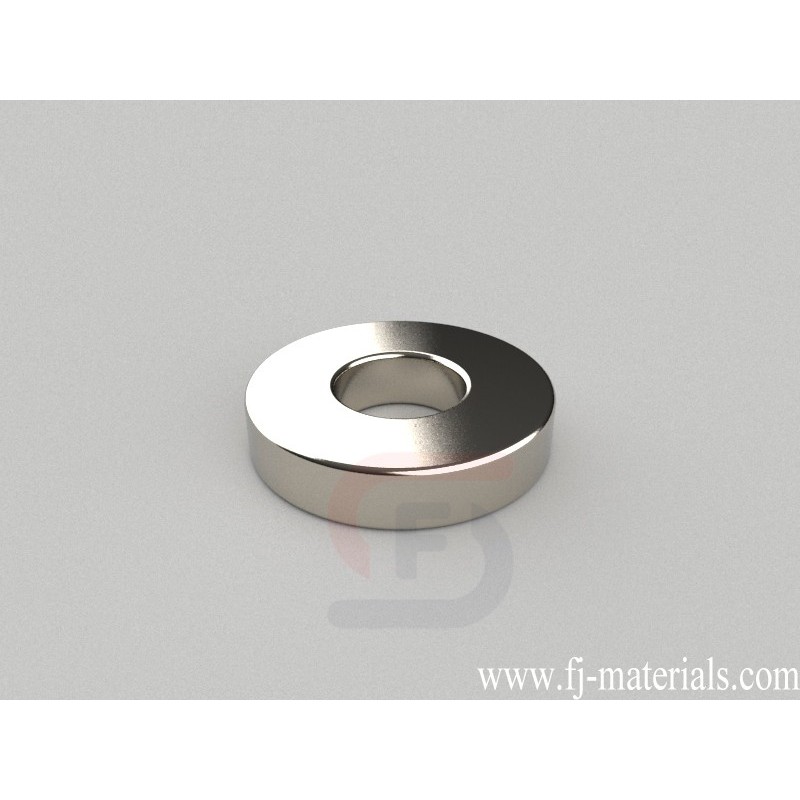

R-OD19H4ID8-N38 Neodymium Magnet, OD19xID8x4mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD19xID8x4mm thick, Thru Thickness magnetized. Pull force is approximately 10.340 lbs (4.7 kg).
R-OD19H4ID8-N38 Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD19xID8x4mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 10.340 lbs (4.7 kg). Magnetization direction: Through Thickness
R-OD19H4ID8-N38 Neodymium Magnet, OD19xID8x4mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD19xID8x4mm thick, Thru Thickness magnetized. Pull force is approximately 10.340 lbs (4.7 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD19H4ID8-N38
Data sheet
- Item Number
- R-OD19H4ID8-N38
- Material
- NdFeB
- Grade
- N38
- Size
- OD19xID8x4mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 6.998g
- Pull Force
- 10.340 lbs (4.7 kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- C. 6.35-9.53mm
R-OD19H4ID8-N38 Neodymium Magnet, OD19xID8x4mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD19xID8x4mm thick, Thru Thickness magnetized. Pull force is approximately 10.340 lbs (4.7 kg).
