OD22.5xID4x3mm thick Ring Magnets | R-OD22.5H3ID4(90deg)-N45

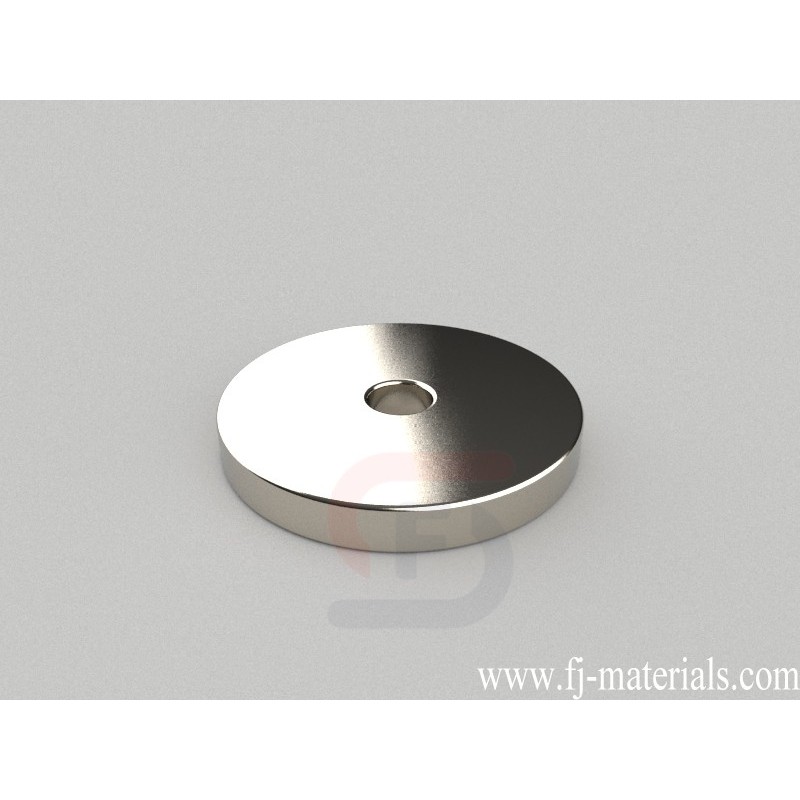

R-OD22.5H3ID4(90deg)-N45 Neodymium Magnet, OD22.5xID4x3mm Ring Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is OD22.5xID4x3mm thick, Thru Thickness magnetized. Pull force is approximately 9.724 lbs (4.42 kg).
R-OD22.5H3ID4(90deg)-N45 Neodymium Ring Magnets is made from high perfermance N45 NdFeB. The dimesion is OD22.5xID4x3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 9.724 lbs (4.42 kg). Magnetization direction: Through Thickness
R-OD22.5H3ID4(90deg)-N45 Neodymium Magnet, OD22.5xID4x3mm Ring Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is OD22.5xID4x3mm thick, Thru Thickness magnetized. Pull force is approximately 9.724 lbs (4.42 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD22.5H3ID4(90deg)-N45
Data sheet
- Item Number
- R-OD22.5H3ID4(90deg)-N45
- Material
- NdFeB
- Grade
- N45
- Size
- OD22.5xID4x3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 8.663g
- Pull Force
- 9.724 lbs (4.42 kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- B. 3.18-6.35mm
R-OD22.5H3ID4(90deg)-N45 Neodymium Magnet, OD22.5xID4x3mm Ring Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is OD22.5xID4x3mm thick, Thru Thickness magnetized. Pull force is approximately 9.724 lbs (4.42 kg).
