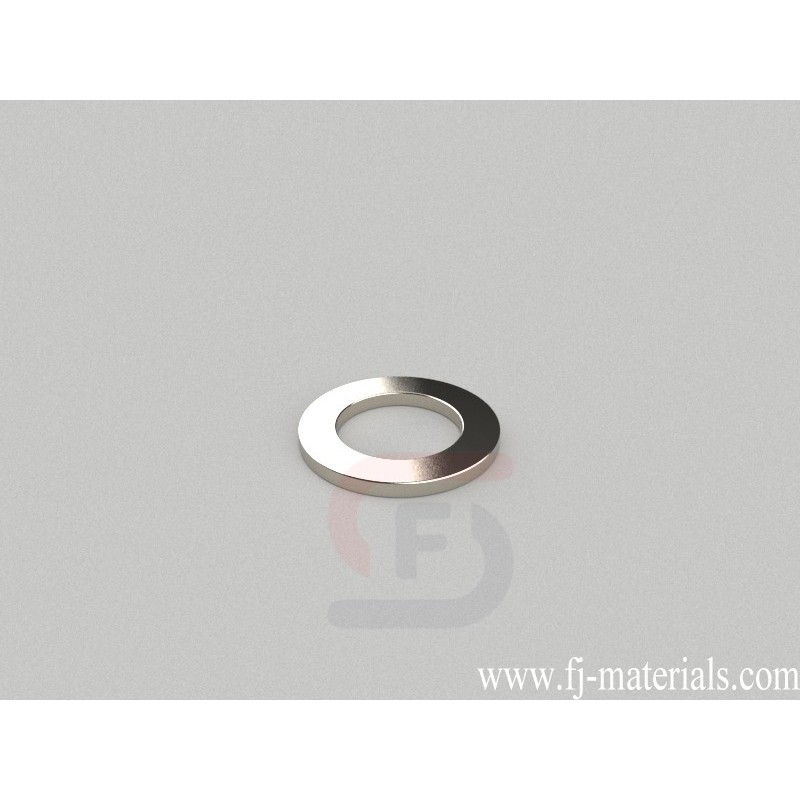

OD24xID15x2mm thick Ring Magnets | R-OD24H2ID15-N35H
R-OD24H2ID15-N35H Neodymium Magnet, OD24xID15x2mm Ring Magnet is made of Grade N35H NdFeB, Nickel Plated. The dimension is OD24xID15x2mm thick, Thru Thickness magnetized. Pull force is approximately test value.
R-OD24H2ID15-N35H Neodymium Ring Magnets is made from high perfermance N35H NdFeB. The dimesion is OD24xID15x2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness
R-OD24H2ID15-N35H Neodymium Magnet, OD24xID15x2mm Ring Magnet is made of Grade N35H NdFeB, Nickel Plated. The dimension is OD24xID15x2mm thick, Thru Thickness magnetized. Pull force is approximately test value.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD24H2ID15-N35H
Data sheet
- Item Number
- R-OD24H2ID15-N35H
- Material
- NdFeB
- Grade
- N35H
- Size
- OD24xID15x2mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 4.135g
- Pull Force
- test value
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- E. 12.7-19.05mm
R-OD24H2ID15-N35H Neodymium Magnet, OD24xID15x2mm Ring Magnet is made of Grade N35H NdFeB, Nickel Plated. The dimension is OD24xID15x2mm thick, Thru Thickness magnetized. Pull force is approximately test value.
