OD25xID12x10mm thick with countersunk hole d12/6 Ring Magnets | R-OD25H10ID12/6-N38(23005BSth)

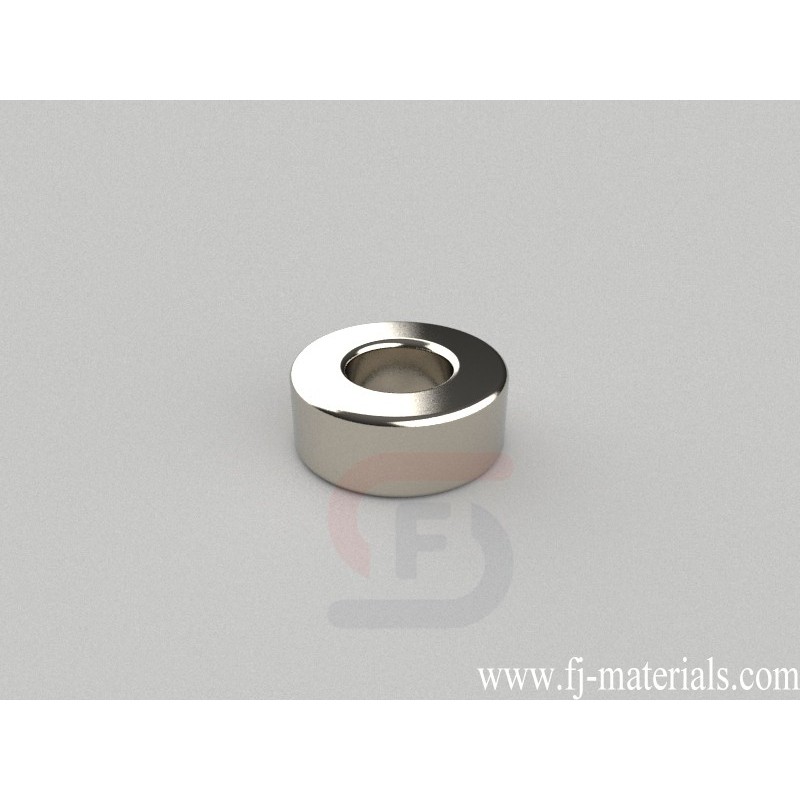

R-OD25H10ID12/6-N38(23005BSth) Neodymium Magnet, OD25xID12x10mm with countersunk hole d12/6 Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID12x10mm thick with countersunk hole d12/6, Thru Thickness magnetized. Pull force is approximately 34.760 lbs (15.8 kg).
R-OD25H10ID12/6-N38(23005BSth) Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD25xID12x10mm thick with countersunk hole d12/6, Ni-Cu-Ni (Nickel) coating. Pull force: 34.760 lbs (15.8 kg). Magnetization direction: Through
R-OD25H10ID12/6-N38(23005BSth) Neodymium Magnet, OD25xID12x10mm with countersunk hole d12/6 Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID12x10mm thick with countersunk hole d12/6, Thru Thickness magnetized. Pull force is approximately 34.760 lbs (15.8 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD25H10ID12/6-N38(23005BSth)
Data sheet
- Item Number
- R-OD25H10ID12/6-N38(23005BSth)
- Material
- NdFeB
- Grade
- N38
- Size
- OD25xID12x10mm thick with countersunk hole d12/6
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 28.333g
- Pull Force
- 34.760 lbs (15.8 kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- D. 9.53-12.7mm
R-OD25H10ID12/6-N38(23005BSth) Neodymium Magnet, OD25xID12x10mm with countersunk hole d12/6 Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID12x10mm thick with countersunk hole d12/6, Thru Thickness magnetized. Pull force is approximately 34.760 lbs (15.8 kg).
