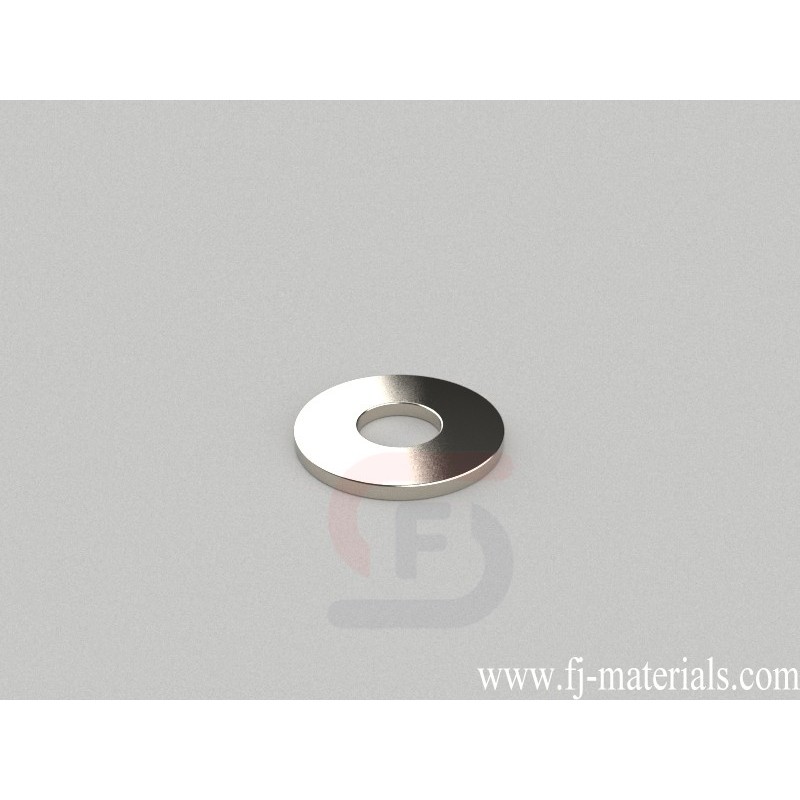

OD25xID10x2mm thick Ring Magnets | R-OD25H2ID10-N38
R-OD25H2ID10-N38 Neodymium Magnet, OD25xID10x2mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID10x2mm thick, Thru Thickness magnetized. Pull force is approximately 6.305 lbs (2.866 kg).
R-OD25H2ID10-N38 Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD25xID10x2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 6.305 lbs (2.866 kg). Magnetization direction: Through Thickness
R-OD25H2ID10-N38 Neodymium Magnet, OD25xID10x2mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID10x2mm thick, Thru Thickness magnetized. Pull force is approximately 6.305 lbs (2.866 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD25H2ID10-N38
Data sheet
- Item Number
- R-OD25H2ID10-N38
- Material
- NdFeB
- Grade
- N38
- Size
- OD25xID10x2mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 6.185g
- Pull Force
- 6.305 lbs (2.866 kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- D. 9.53-12.7mm
R-OD25H2ID10-N38 Neodymium Magnet, OD25xID10x2mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID10x2mm thick, Thru Thickness magnetized. Pull force is approximately 6.305 lbs (2.866 kg).
