OD25xID12x5mm thick Ring Magnets | R-OD25H5ID12-N38

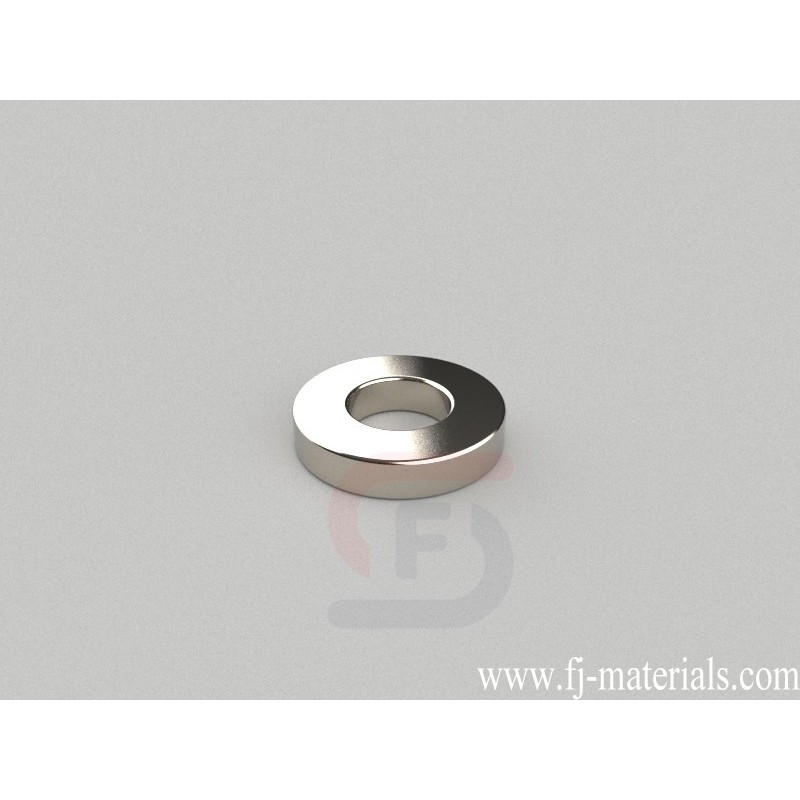

R-OD25H5ID12-N38 Neodymium Magnet, OD25xID12x5mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID12x5mm thick, Thru Thickness magnetized. Pull force is approximately test value.
R-OD25H5ID12-N38 Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD25xID12x5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness
R-OD25H5ID12-N38 Neodymium Magnet, OD25xID12x5mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID12x5mm thick, Thru Thickness magnetized. Pull force is approximately test value.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD25H5ID12-N38
Data sheet
- Item Number
- R-OD25H5ID12-N38
- Material
- NdFeB
- Grade
- N38
- Size
- OD25xID12x5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 14.167g
- Pull Force
- test value
- Diameter
- F. 19.05-25.4mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- D. 9.53-12.7mm
R-OD25H5ID12-N38 Neodymium Magnet, OD25xID12x5mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD25xID12x5mm thick, Thru Thickness magnetized. Pull force is approximately test value.
