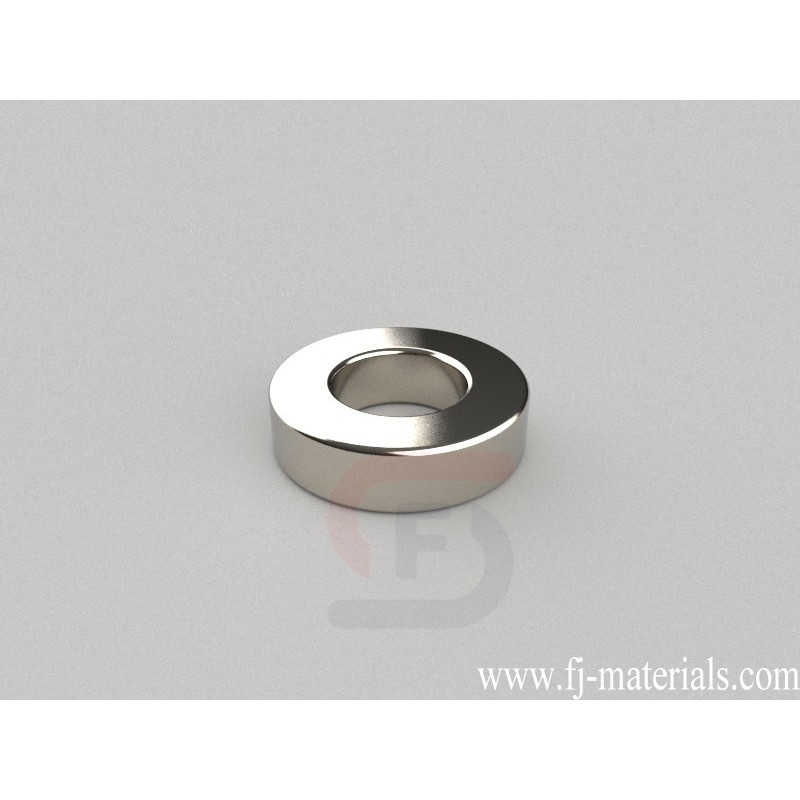

OD30xID15.5x8mm thick Ring Magnets | R-OD30H8ID15.5-N38
R-OD30H8ID15.5-N38 Neodymium Magnet, OD30xID15.5x8mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD30xID15.5x8mm thick, Thru Thickness magnetized. Pull force is approximately 29.700 lbs (13.5 kg).
R-OD30H8ID15.5-N38 Neodymium Ring Magnets is made from high perfermance N38 NdFeB. The dimesion is OD30xID15.5x8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 29.700 lbs (13.5 kg). Magnetization direction: Through Thickness
R-OD30H8ID15.5-N38 Neodymium Magnet, OD30xID15.5x8mm Ring Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is OD30xID15.5x8mm thick, Thru Thickness magnetized. Pull force is approximately 29.700 lbs (13.5 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD30H8ID15.5-N38
Data sheet
- Item Number
- R-OD30H8ID15.5-N38
- Material
- NdFeB
- Grade
- N38
- Size
- OD30xID15.5x8mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 31.090g
- Pull Force
- 29.700 lbs (13.5 kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- C. 6.35-9.53mm
- Inner Diameter
- E. 12.7-19.05mm
