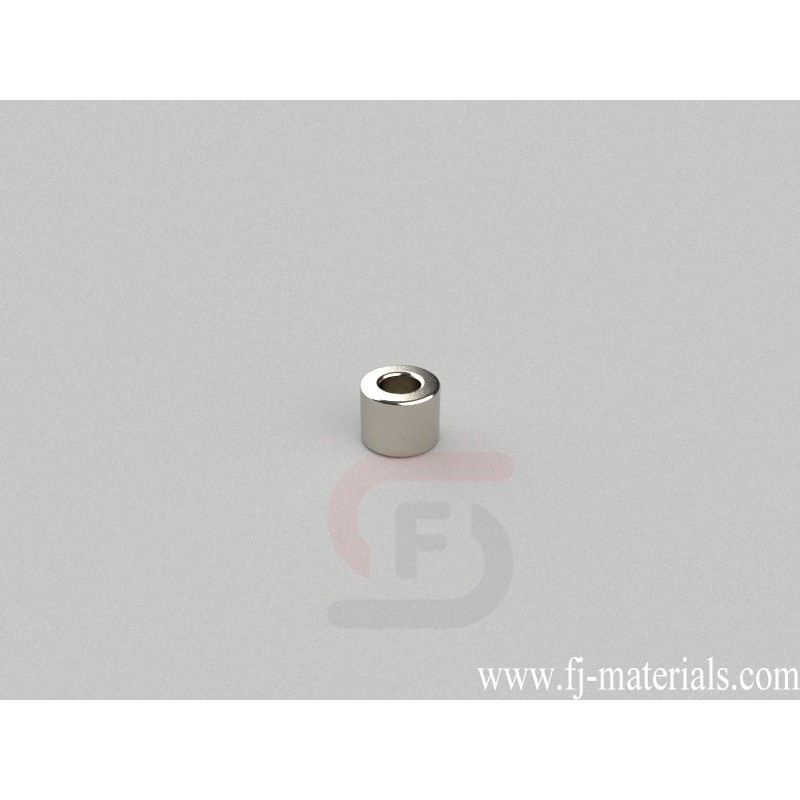

OD5xID2.5x4mm thick Ring Magnets | R-OD5H4ID2.5-N42UH-DIA

R-OD5H4ID2.5-N42UH-DIA Neodymium Magnet, OD5xID2.5x4mm Ring Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is OD5xID2.5x4mm thick, Diametric magnetized. Pull force is approximately test value.

R-OD5H4ID2.5-N42UH-DIA Neodymium Ring Magnets is made from high perfermance N42 NdFeB. The dimesion is OD5xID2.5x4mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Diametrical magnetized

R-OD5H4ID2.5-N42UH-DIA Neodymium Magnet, OD5xID2.5x4mm Ring Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is OD5xID2.5x4mm thick, Diametric magnetized. Pull force is approximately test value.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R-OD5H4ID2.5-N42UH-DIA

Data sheet

Item Number
R-OD5H4ID2.5-N42UH-DIA
Material
NdFeB
Grade
N42
Size
OD5xID2.5x4mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Diametric
Weight
0.442g
Pull Force
test value
Diameter
B. 3.18-6.35mm
Thickness
B. 3.18-6.35mm
Inner Diameter
A. 0.00-3.18mm
