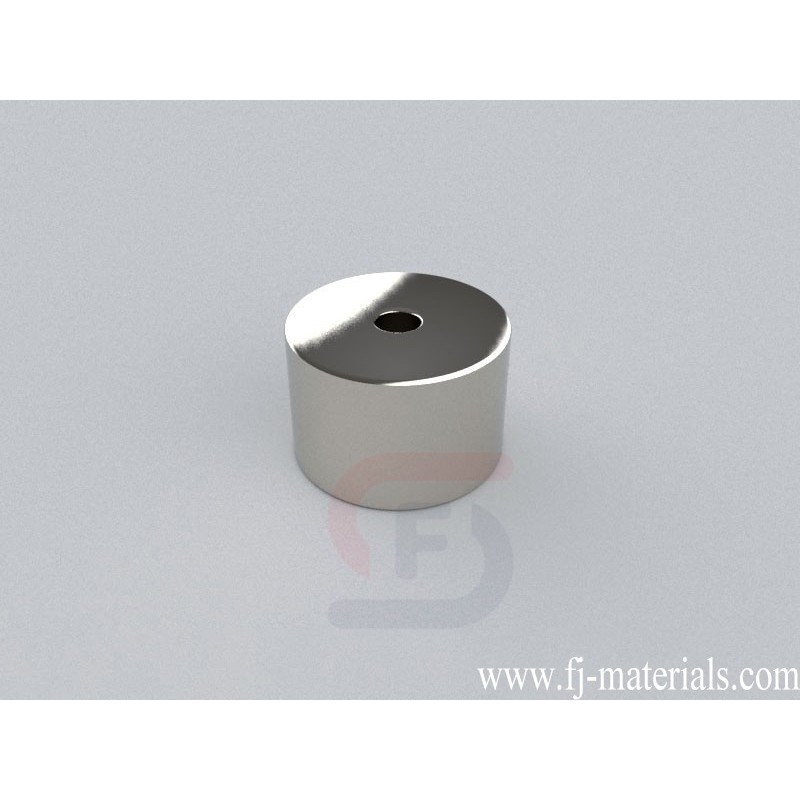

OD60xID12x40mm thick with countersunk hole d12/6 Ring Magnets | R-OD60H40ID12/6-N45

R-OD60H40ID12/6-N45 Neodymium Magnet, OD60xID12x40mm with countersunk hole d12/6 Ring Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is OD60xID12x40mm thick with countersunk hole d12/6, Thru Thickness magnetized. Pull force is approximately test value.

R-OD60H40ID12/6-N45 Neodymium Ring Magnets is made from high perfermance N45 NdFeB. The dimesion is OD60xID12x40mm thick with countersunk hole d12/6, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness

R-OD60H40ID12/6-N45 Neodymium Magnet, OD60xID12x40mm with countersunk hole d12/6 Ring Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is OD60xID12x40mm thick with countersunk hole d12/6, Thru Thickness magnetized. Pull force is approximately test value.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R-OD60H40ID12/6-N45

Data sheet

Item Number
R-OD60H40ID12/6-N45
Material
NdFeB
Grade
N45
Size
OD60xID12x40mm thick with countersunk hole d12/6
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
814.301g
Pull Force
test value
Diameter
H. 50.8-254mm
Thickness
G. 25.4-50.8mm
Inner Diameter
D. 9.53-12.7mm
