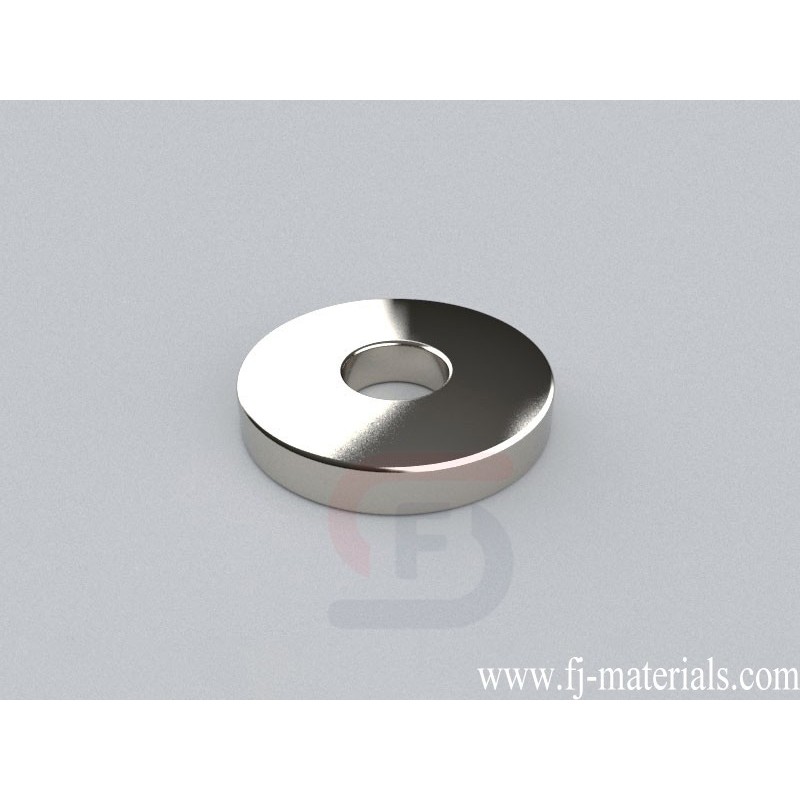

OD76.2xID25.4x12.7mm thick Ring Magnets | R-OD76.2H12.7ID25.4-N35
R-OD76.2H12.7ID25.4-N35 Neodymium Magnet, OD76.2xID25.4x12.7mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD76.2xID25.4x12.7mm thick, Thru Thickness magnetized. Pull force is approximately 117.238 lbs (53.29 kg).
R-OD76.2H12.7ID25.4-N35 Neodymium Ring Magnets is made from high perfermance N35 NdFeB. The dimesion is OD76.2xID25.4x12.7mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 117.238 lbs (53.29 kg). Magnetization direction: Through Thickness
R-OD76.2H12.7ID25.4-N35 Neodymium Magnet, OD76.2xID25.4x12.7mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD76.2xID25.4x12.7mm thick, Thru Thickness magnetized. Pull force is approximately 117.238 lbs (53.29 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD76.2H12.7ID25.4-N35
Data sheet
- Item Number
- R-OD76.2H12.7ID25.4-N35
- Material
- NdFeB
- Grade
- N35
- Size
- OD76.2xID25.4x12.7mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 386.111g
- Pull Force
- 117.238 lbs (53.29 kg)
- Diameter
- H. 50.8-254mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- F. 19.05-25.4mm
R-OD76.2H12.7ID25.4-N35 Neodymium Magnet, OD76.2xID25.4x12.7mm Ring Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is OD76.2xID25.4x12.7mm thick, Thru Thickness magnetized. Pull force is approximately 117.238 lbs (53.29 kg).
