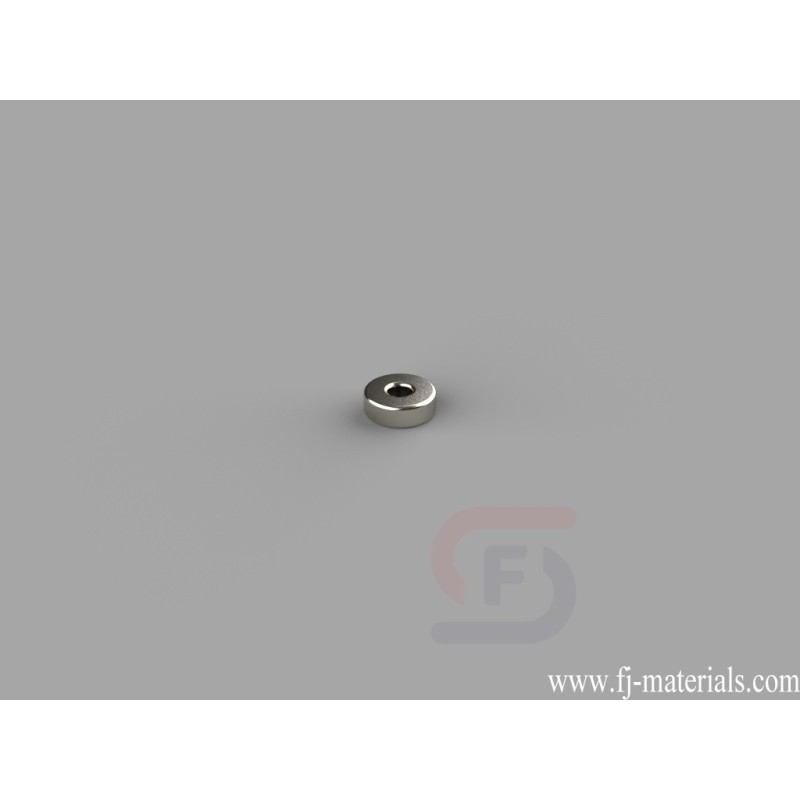

3/16 od x 1/16 id x 1/16 inch thick Ring Magnets | R311
R311 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" od x 1/16" id x 1/16" thick, Axial magnetized. Pull force is approximately 0.70 lbs.
Yiwu Fenjiao E-commerce Firm supply R311 Neodymium Ring Magnets with high quality at competitive price.
R311 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" od x 1/16" id x 1/16" thick, Axial magnetized. Pull force is approximately 0.70 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R311
Data sheet
- Item Number
- R311
- Material
- NdFeB
- Grade
- N42
- Size
- 3/16" od x 1/16" id x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.00665 oz. (0.189 g)
- Pull Force
- 0.70 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- A. 0.00-3.18mm
R311 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" od x 1/16" id x 1/16" thick, Axial magnetized. Pull force is approximately 0.70 lbs.
