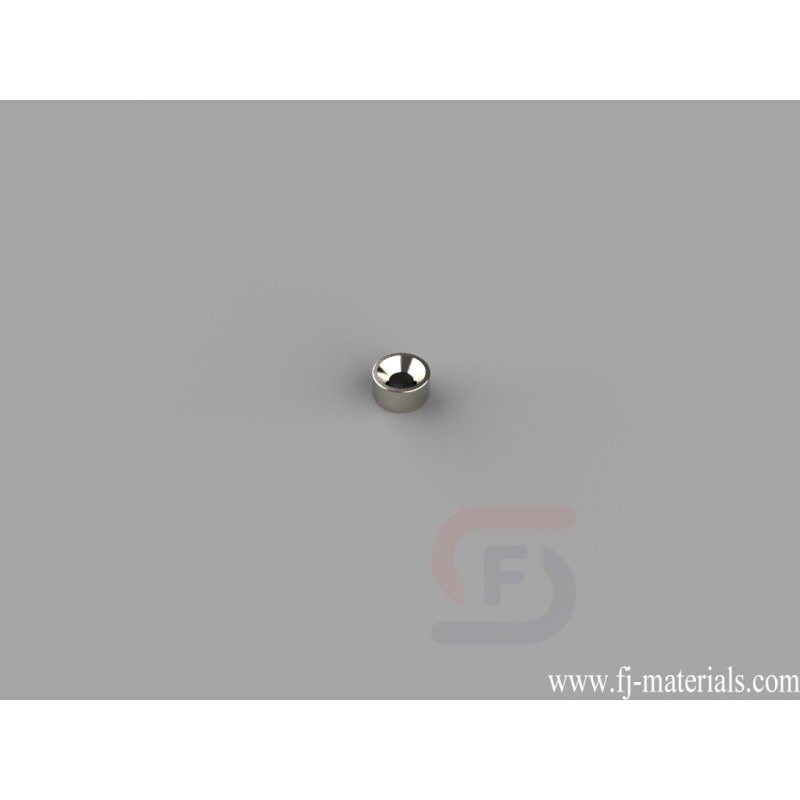

1/4 od x 1/8 inch thick with countersunk hole for No. 2 screw Ring Magnets | R422CS-S
R422CS-S Neodymium Magnets, 1/4 od x 1/8" thick with countersunk hole for #2 screw is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4 od x 1/8" thick with countersunk hole for #2 screw, Axial magnetized. Pull force is approximately 3.56 lbs.
R422CS-S Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1/4 od x 1/8" thick with countersunk hole for #2 screw, Ni-Cu-Ni (Nickel) coating. Pull force: 3.56 lbs. Magnetization direction: Axial (Poles on Flat Ends)
R422CS-S Neodymium Magnets, 1/4 od x 1/8" thick with countersunk hole for #2 screw is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4 od x 1/8" thick with countersunk hole for #2 screw, Axial magnetized. Pull force is approximately 3.56 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R422CS-S
Data sheet
- Item Number
- R422CS-S
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4 od x 1/8" thick with countersunk hole for No. 2 screw
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0203 oz. (0.575 g)
- Pull Force
- 3.56 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- A. 0.00-3.18mm
R422CS-S Neodymium Magnets, 1/4 od x 1/8" thick with countersunk hole for #2 screw is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4 od x 1/8" thick with countersunk hole for #2 screw, Axial magnetized. Pull force is approximately 3.56 lbs.
