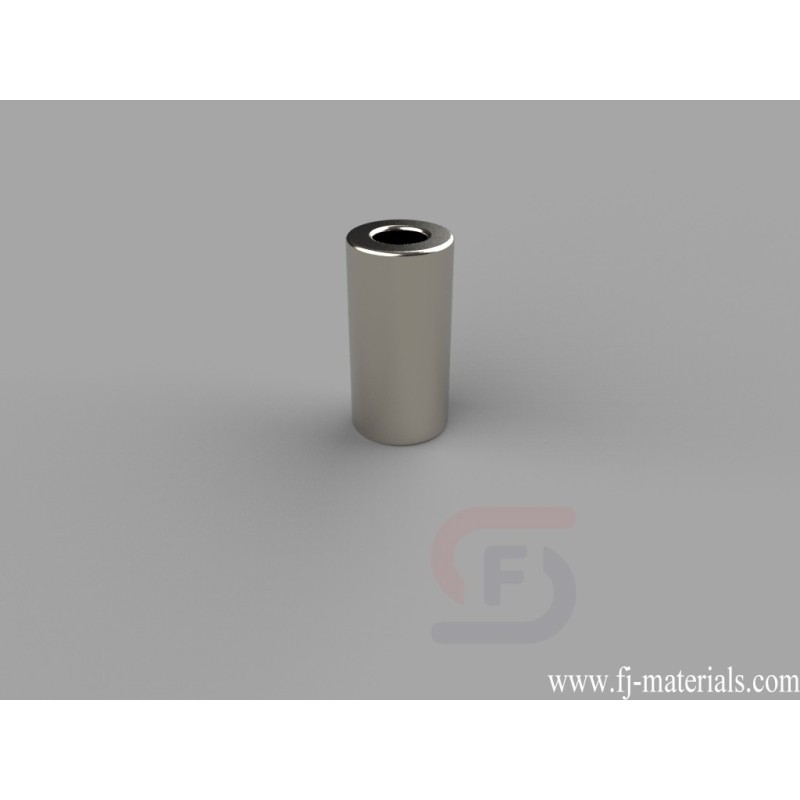

1/4 od x 1/8 id x 1/2 inch thick Ring Magnets | R428
R428 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" od x 1/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 2.92 lbs.
Yiwu Fenjiao E-commerce Firm supply R428 Neodymium Ring Magnets with high quality at competitive price.
R428 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" od x 1/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 2.92 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R428
Data sheet
- Item Number
- R428
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" od x 1/8" id x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0798 oz. (2.26 g)
- Pull Force
- 2.92 lbs
- Diameter
- B. 3.18-6.35mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- A. 0.00-3.18mm
R428 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" od x 1/8" id x 1/2" thick, Axial magnetized. Pull force is approximately 2.92 lbs.
