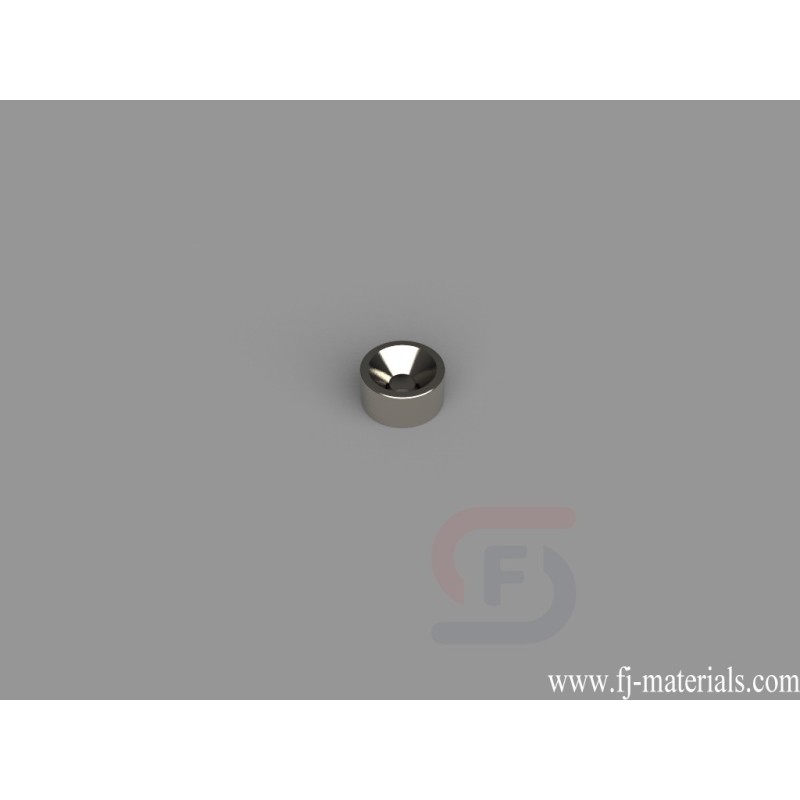

3/8 od x 1/8 inch thick with countersunk hole for No. 4 screw Ring Magnets | R622CS-S
R622CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" od x 1/8" thick with countersunk hole for #4 screw, Axial magnetized. Pull force is approximately 3.56 lbs.
Yiwu Fenjiao E-commerce Firm supply R622CS-S Neodymium Ring Magnets with high quality at competitive price.
R622CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" od x 1/8" thick with countersunk hole for #4 screw, Axial magnetized. Pull force is approximately 3.56 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R622CS-S
Data sheet
- Item Number
- R622CS-S
- Material
- NdFeB
- Grade
- N42
- Size
- 3/8" od x 1/8" thick with countersunk hole for No. 4 screw
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0532 oz. (1.51 g)
- Pull Force
- 3.56 lbs
- Diameter
- C. 6.35-9.53mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- A. 0.00-3.18mm
R622CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" od x 1/8" thick with countersunk hole for #4 screw, Axial magnetized. Pull force is approximately 3.56 lbs.
