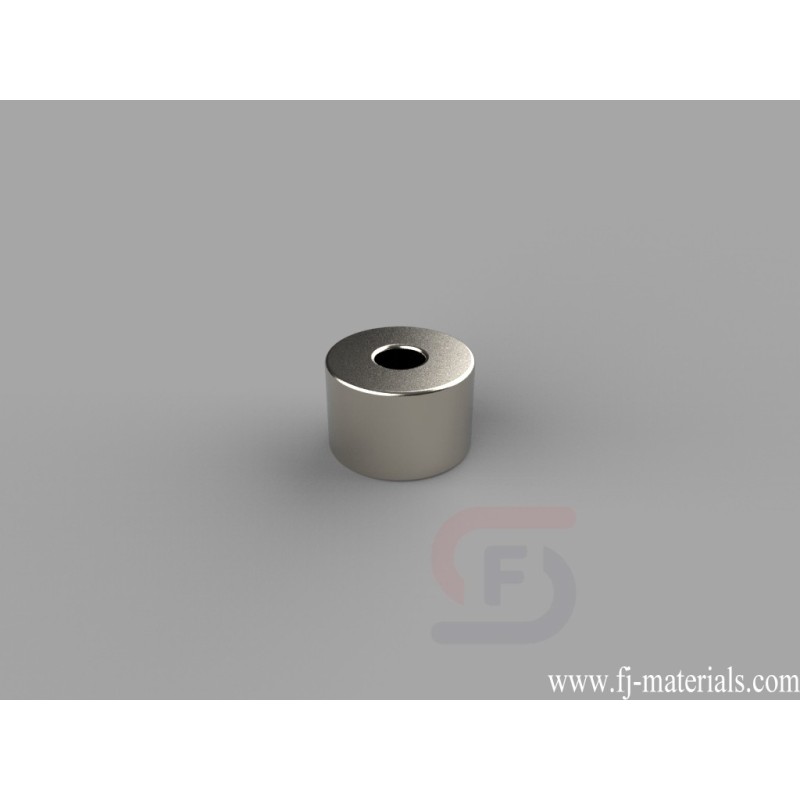

3/8 od x 1/8 id x 1/4 inch thick Ring Magnets | R624

R624 Neodymium Magnets, 3/8" od x 1/8" id x 1/4" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" od x 1/8" id x 1/4" thick, Axial magnetized. Pull force is approximately 6.26 lbs.

R624 Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 3/8" od x 1/8" id x 1/4" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 6.26 lbs. Magnetization direction: Axial (Poles on Flat Ends)

R624 Neodymium Magnets, 3/8" od x 1/8" id x 1/4" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" od x 1/8" id x 1/4" thick, Axial magnetized. Pull force is approximately 6.26 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R624

Data sheet

Item Number
R624
Material
NdFeB
Grade
N42
Size
3/8" od x 1/8" id x 1/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.1064 oz. (3.02 g)
Pull Force
6.26 lbs
Diameter
C. 6.35-9.53mm
Thickness
B. 3.18-6.35mm
Inner Diameter
A. 0.00-3.18mm
