1/2 od x 1/8 id x 1/32 inch thick Ring Magnets | R8201

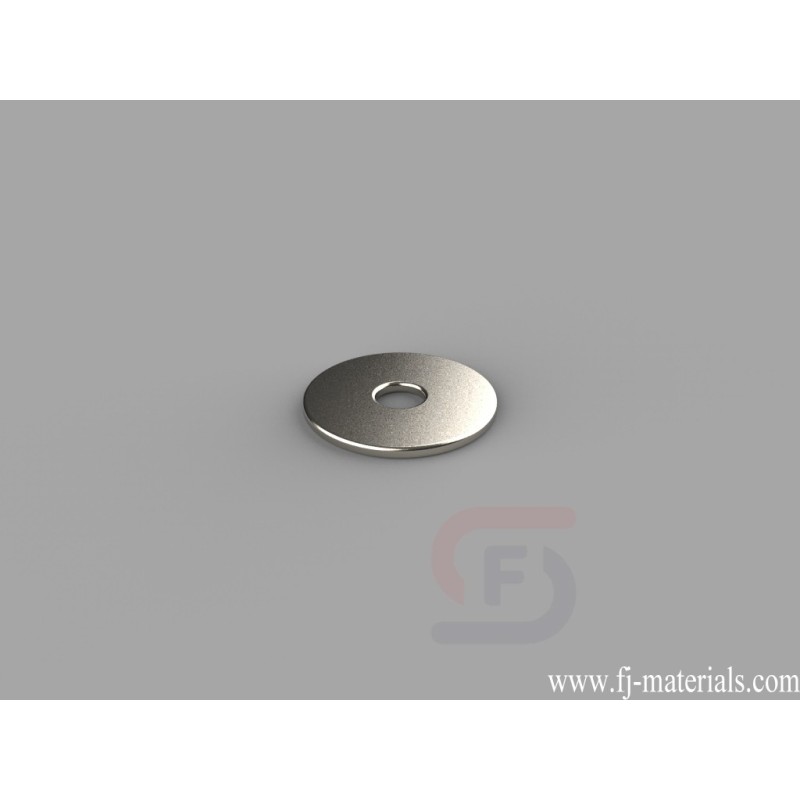

R8201 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/8" id x 1/32" thick, Axial magnetized. Pull force is approximately 1.11 lbs.
Yiwu Fenjiao E-commerce Firm supply R8201 Neodymium Ring Magnets with high quality at competitive price.
R8201 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/8" id x 1/32" thick, Axial magnetized. Pull force is approximately 1.11 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R8201
Data sheet
- Item Number
- R8201
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" od x 1/8" id x 1/32" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0249 oz. (0.71 g)
- Pull Force
- 1.11 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- A. 0.00-3.18mm
R8201 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/8" id x 1/32" thick, Axial magnetized. Pull force is approximately 1.11 lbs.
