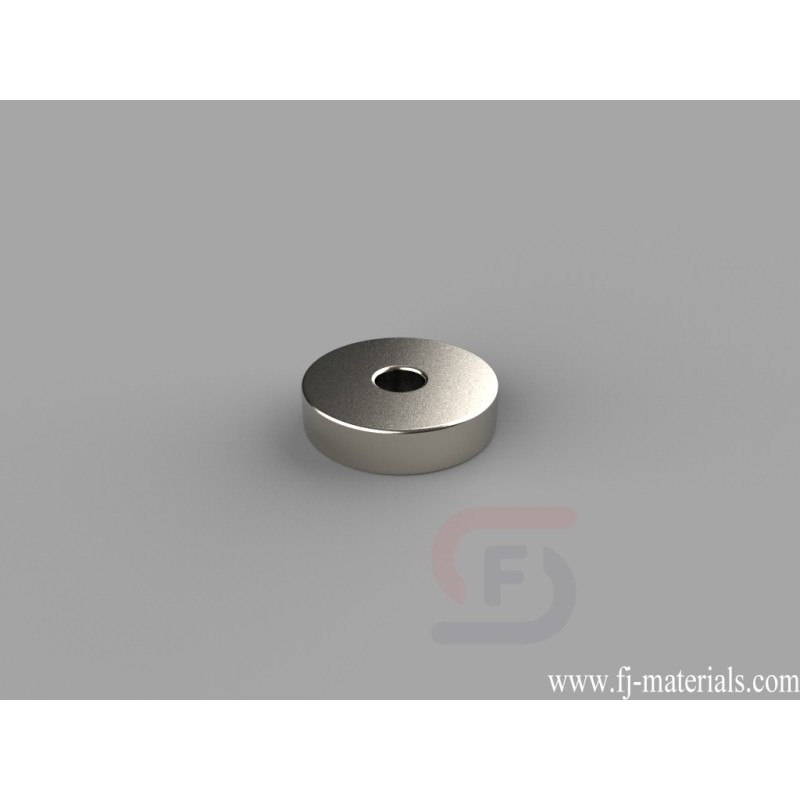

1/2 od x 1/8 id x 1/8 inch thick Ring Magnets | R822

R822 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 6.18 lbs.

Yiwu Fenjiao E-commerce Firm supply R822 Neodymium Ring Magnets with high quality at competitive price.

R822 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 6.18 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

R822

Data sheet

Item Number
R822
Material
NdFeB
Grade
N42
Size
1/2" od x 1/8" id x 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.0998 oz. (2.83 g)
Pull Force
6.18 lbs
Diameter
D. 9.53-12.7mm
Thickness
A. 0.00-3.18mm
Inner Diameter
A. 0.00-3.18mm
