1/2 od x 1/4 id x 1/16 inch thick Ring Magnets | R841

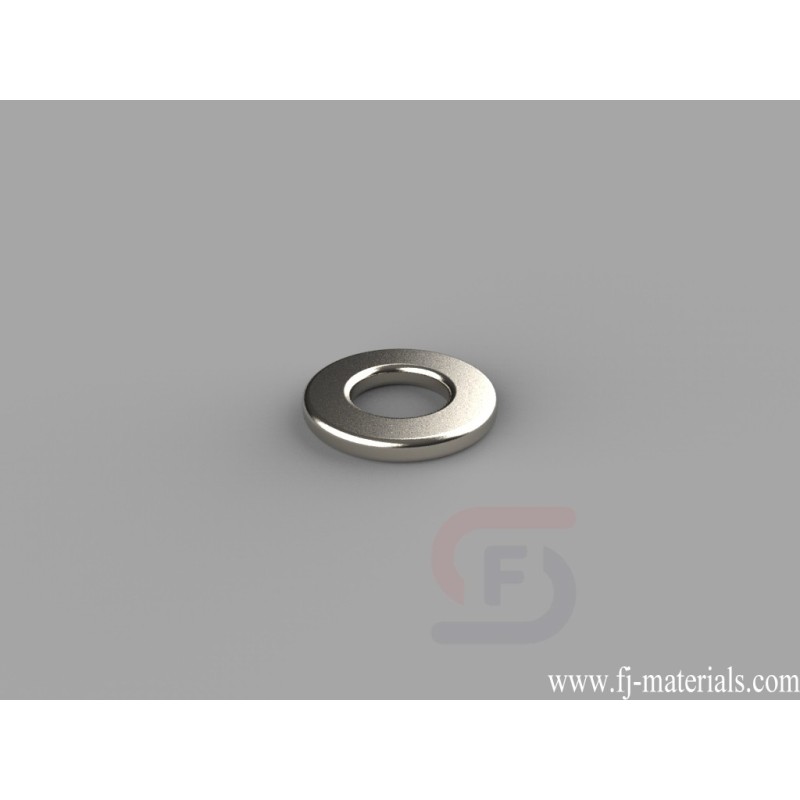

R841 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1/16" thick, Axial magnetized. Pull force is approximately 2.57 lbs.
Yiwu Fenjiao E-commerce Firm supply R841 Neodymium Ring Magnets with high quality at competitive price.
R841 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1/16" thick, Axial magnetized. Pull force is approximately 2.57 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R841
Data sheet
- Item Number
- R841
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" od x 1/4" id x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.0399oz. (1.13 g)
- Pull Force
- 2.57 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- B. 3.18-6.35mm
R841 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1/16" thick, Axial magnetized. Pull force is approximately 2.57 lbs.
