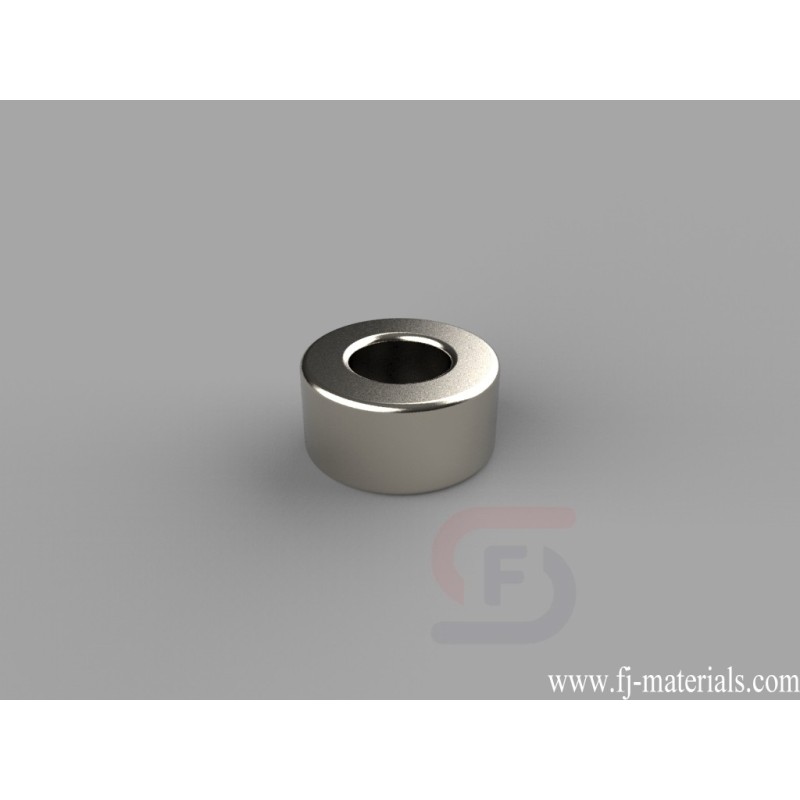

1/2 od x 1/4 id x 1/4 inch thick Ring Magnets | R844
R844 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1/4" thick, Axial magnetized. Pull force is approximately 8.73 lbs.
Yiwu Fenjiao E-commerce Firm supply R844 Neodymium Ring Magnets with high quality at competitive price.
R844 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1/4" thick, Axial magnetized. Pull force is approximately 8.73 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R844
Data sheet
- Item Number
- R844
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" od x 1/4" id x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.16 oz. (4.53 g)
- Pull Force
- 8.73 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- B. 3.18-6.35mm
R844 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1/4" thick, Axial magnetized. Pull force is approximately 8.73 lbs.
