1/2 od x 1/4 id x 1 inch thick Ring Magnets | R84X0

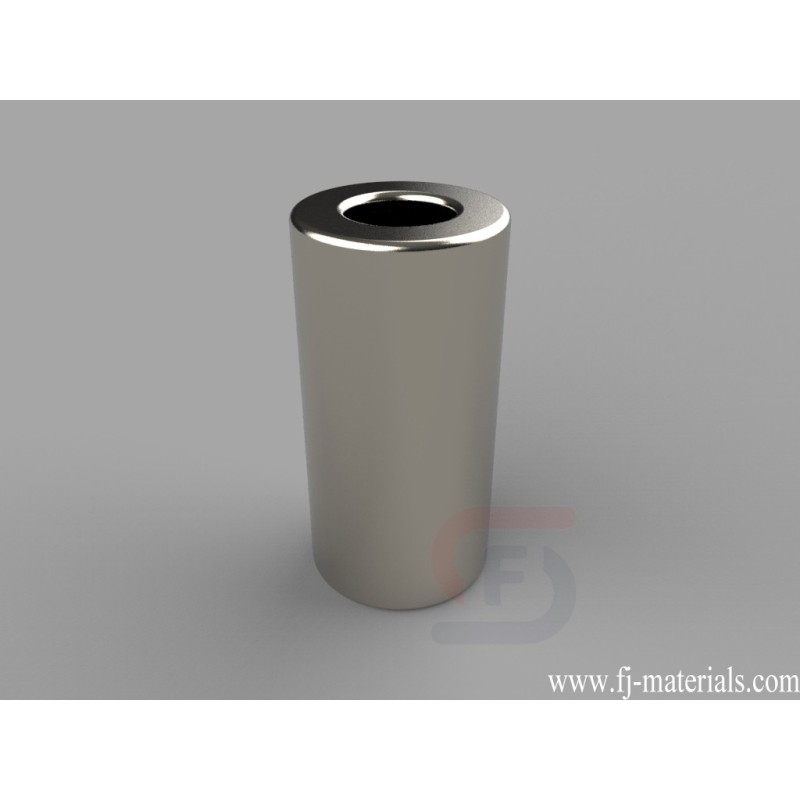

R84X0 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1" thick, Axial magnetized. Pull force is approximately 12.58 lbs.
Yiwu Fenjiao E-commerce Firm supply R84X0 Neodymium Ring Magnets with high quality at competitive price.
R84X0 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1" thick, Axial magnetized. Pull force is approximately 12.58 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R84X0
Data sheet
- Item Number
- R84X0
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" od x 1/4" id x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.638 oz. (18.1 g)
- Pull Force
- 12.58 lbs
- Diameter
- D. 9.53-12.7mm
- Thickness
- F. 19.05-25.4mm
- Inner Diameter
- B. 3.18-6.35mm
R84X0 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" od x 1/4" id x 1" thick, Axial magnetized. Pull force is approximately 12.58 lbs.
