5/8 od x 1/8 id x 1/8 inch thick Ring Magnets | RA22

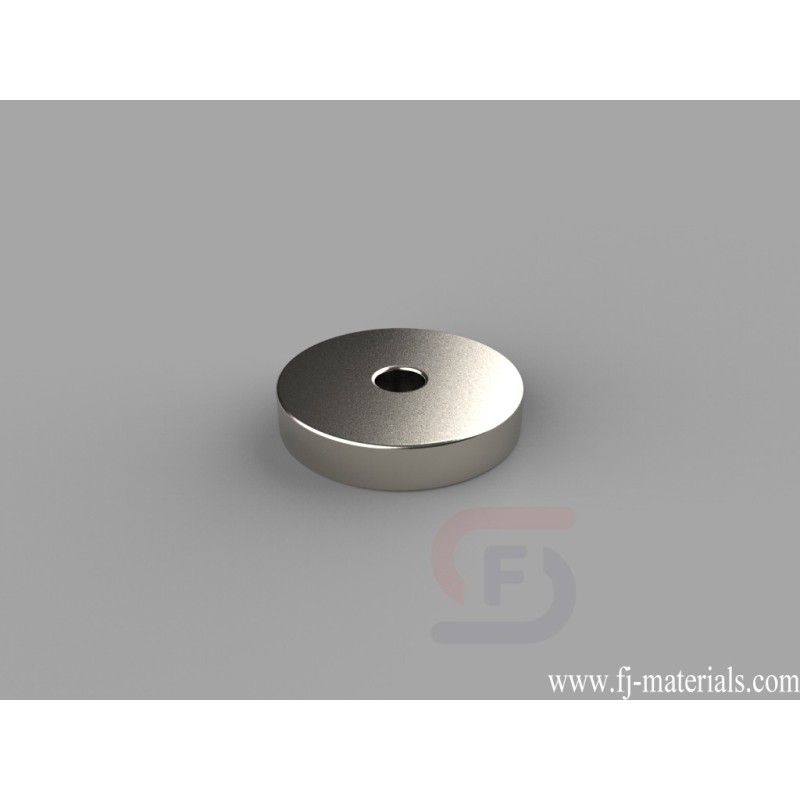

RA22 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" od x 1/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 8.02 lbs.
Yiwu Fenjiao E-commerce Firm supply RA22 Neodymium Ring Magnets with high quality at competitive price.
RA22 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" od x 1/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 8.02 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RA22
Data sheet
- Item Number
- RA22
- Material
- NdFeB
- Grade
- N42
- Size
- 5/8" od x 1/8" id x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.159 oz. (4.52 g)
- Pull Force
- 8.02 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- A. 0.00-3.18mm
RA22 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" od x 1/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 8.02 lbs.
