  • RA22CS-S

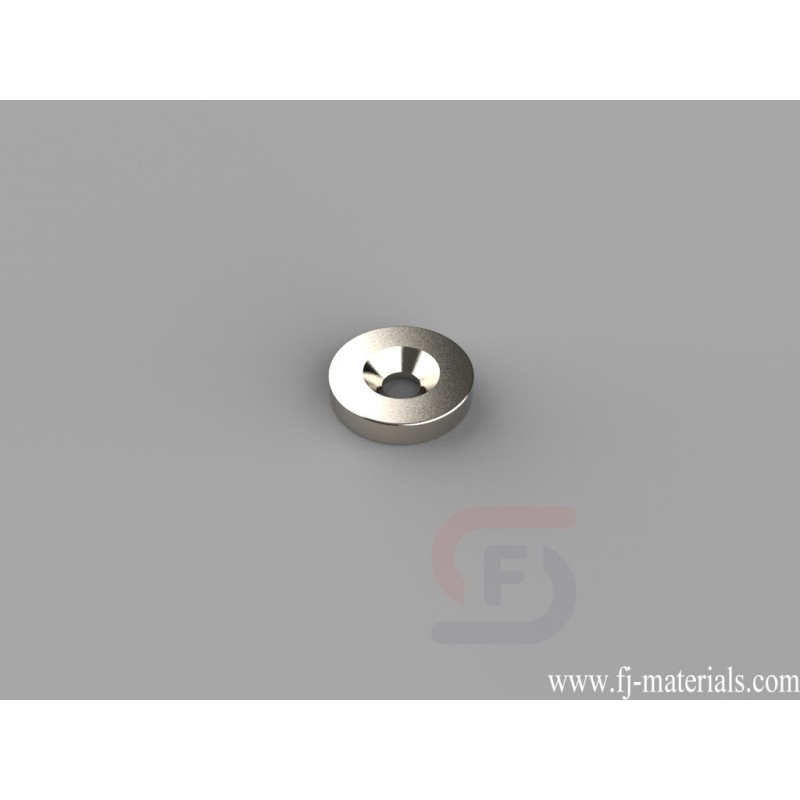

5/8 od x 1/8 inch thick with countersunk hole for No. 6 screw Ring Magnets | RA22CS-S

RA22CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" od x 1/8" thick with countersunk hole for #6 screw, Axial magnetized. Pull force is approximately 7.15 lbs.

Yiwu Fenjiao E-commerce Firm supply RA22CS-S Neodymium Ring Magnets with high quality at competitive price.

RA22CS-S Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" od x 1/8" thick with countersunk hole for #6 screw, Axial magnetized. Pull force is approximately 7.15 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

RA22CS-S

Data sheet

Item Number
RA22CS-S
Material
NdFeB
Grade
N42
Size
5/8" od x 1/8" thick with countersunk hole for No. 6 screw
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.148 oz. (4.18 g)
Pull Force
7.15 lbs
Diameter
E. 12.7-19.05mm
Thickness
A. 0.00-3.18mm
Inner Diameter
A. 0.00-3.18mm
