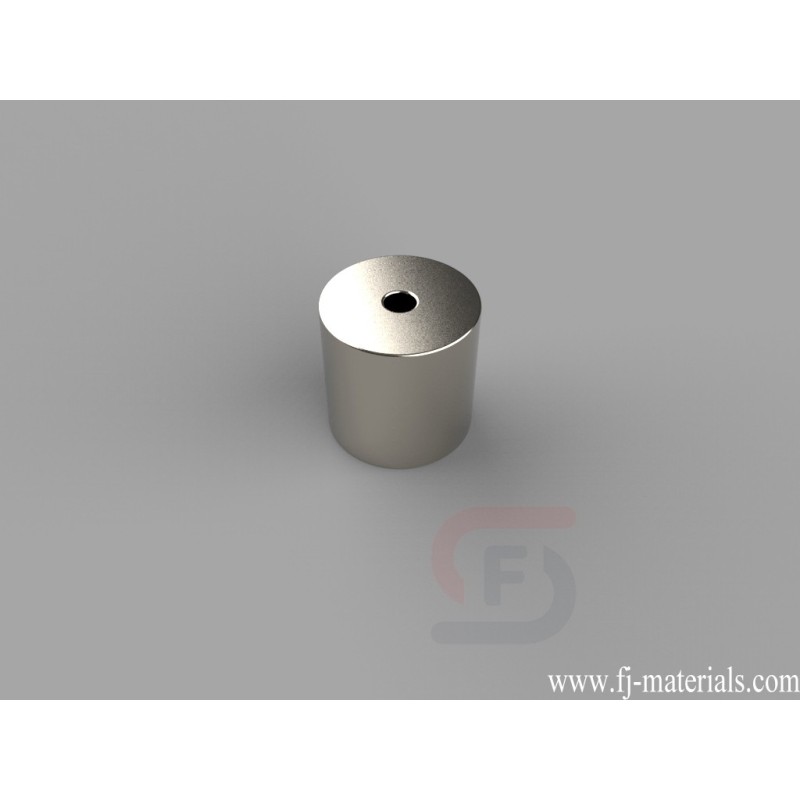

5/8 od x 1/8 id x 5/8 inch thick Ring Magnets | RA2ADIA
RA2ADIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" od x 1/8" id x 5/8" thick, Diametric magnetized. Pull force is approximately 16.26 lbs.
Yiwu Fenjiao E-commerce Firm supply RA2ADIA Neodymium Ring Magnets with high quality at competitive price.
RA2ADIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" od x 1/8" id x 5/8" thick, Diametric magnetized. Pull force is approximately 16.26 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RA2ADIA
Data sheet
- Item Number
- RA2ADIA
- Material
- NdFeB
- Grade
- N42
- Size
- 5/8" od x 1/8" id x 5/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Diametric
- Weight
- 0.798 oz. (22.6 g)
- Pull Force
- 16.26 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- E. 12.7-19.05mm
- Inner Diameter
- A. 0.00-3.18mm
RA2ADIA Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" od x 1/8" id x 5/8" thick, Diametric magnetized. Pull force is approximately 16.26 lbs.
