3/4 od x 1/8 id x 1/8 inch thick Ring Magnets | RC22

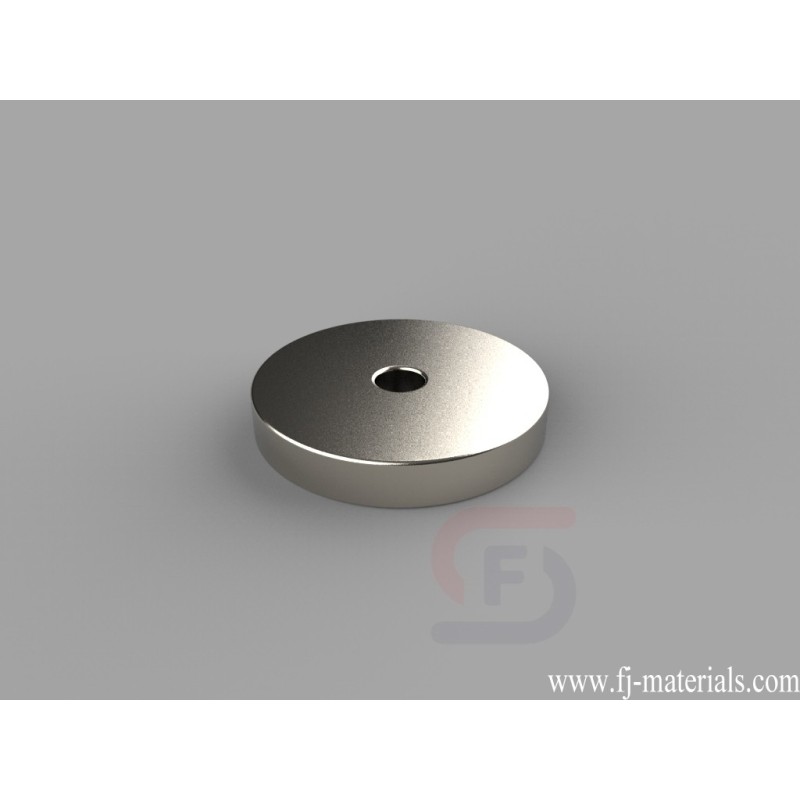

RC22 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 9.63 lbs.
Yiwu Fenjiao E-commerce Firm supply RC22 Neodymium Ring Magnets with high quality at competitive price.
RC22 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 9.63 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RC22
Data sheet
- Item Number
- RC22
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" od x 1/8" id x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.233 oz. (6.6 g)
- Pull Force
- 9.63 lbs
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
- Inner Diameter
- A. 0.00-3.18mm
RC22 Neodymium Ring Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" od x 1/8" id x 1/8" thick, Axial magnetized. Pull force is approximately 9.63 lbs.
